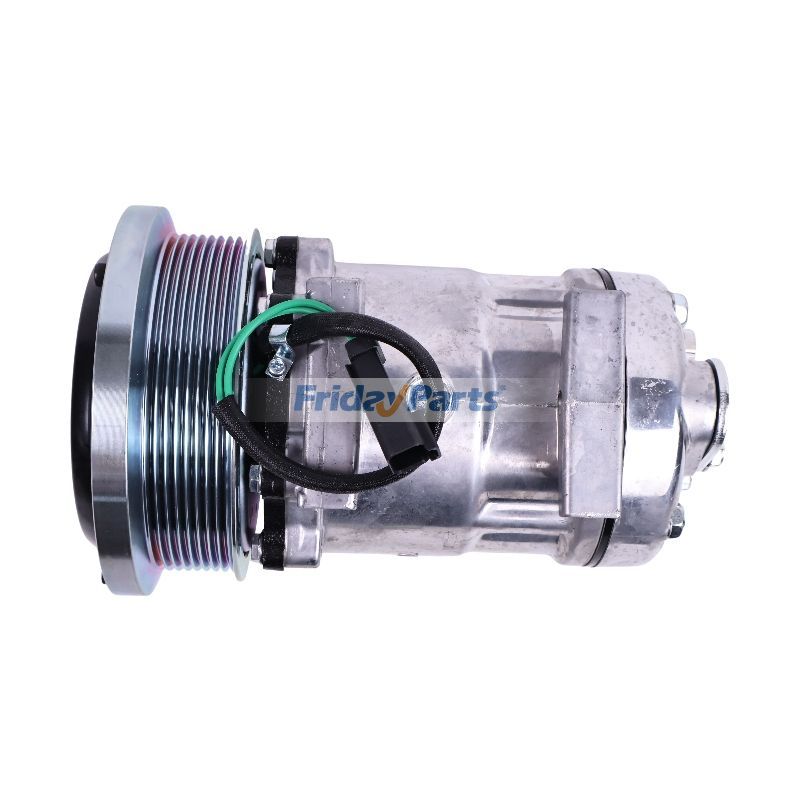

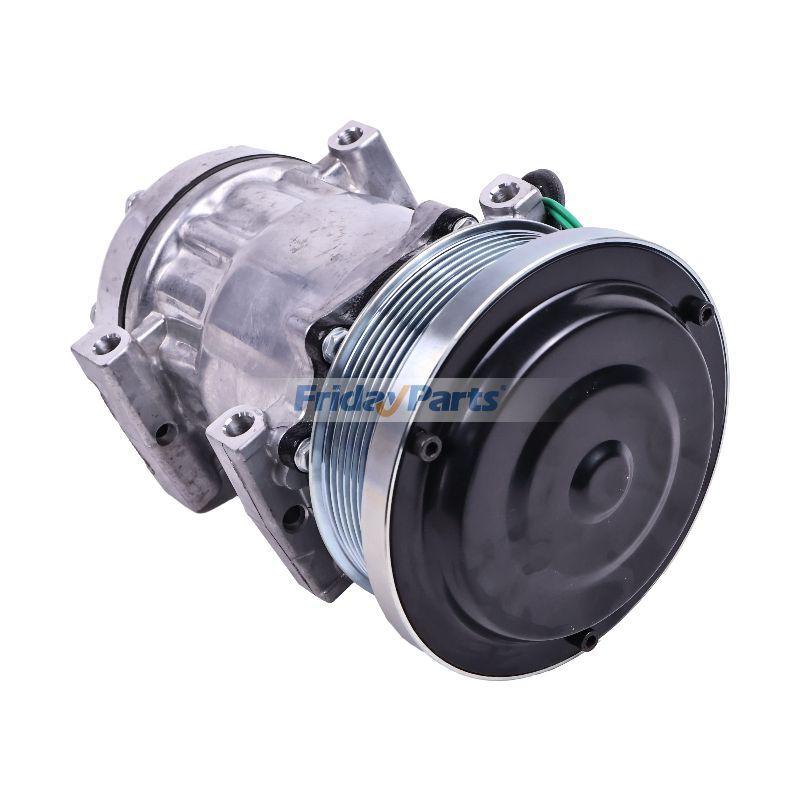

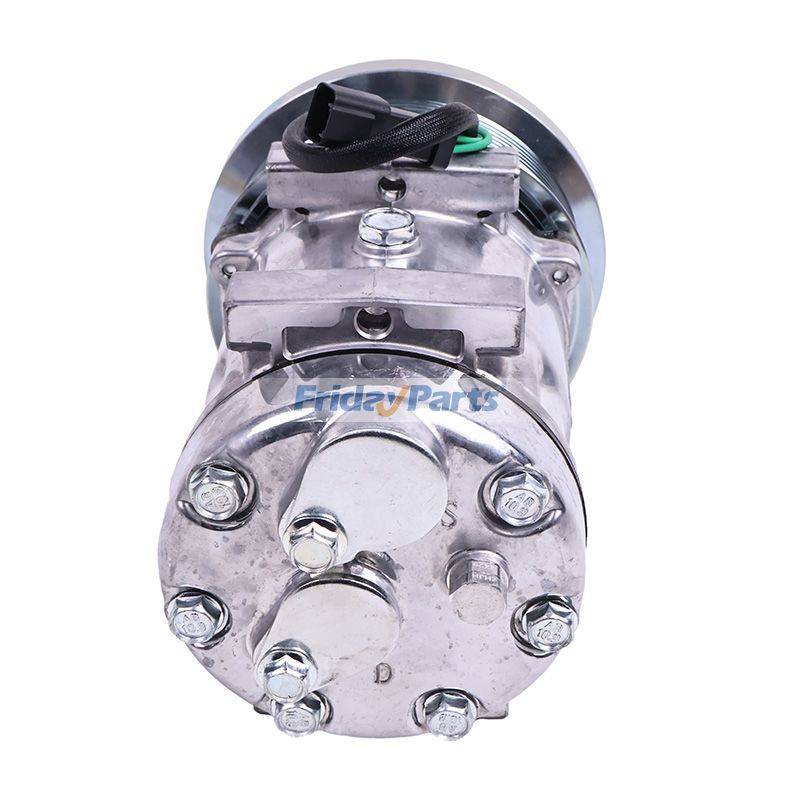

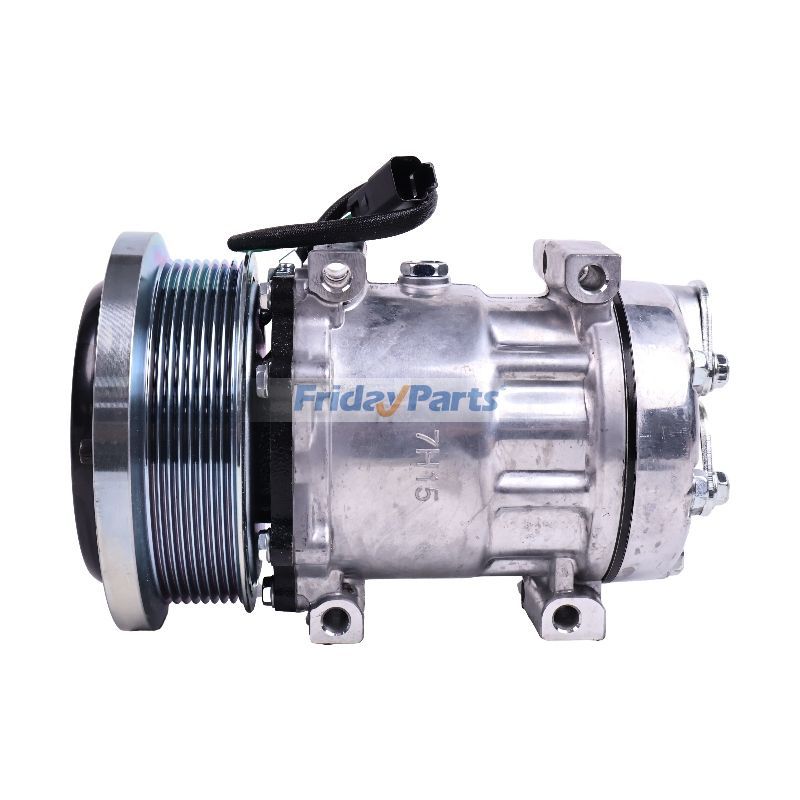

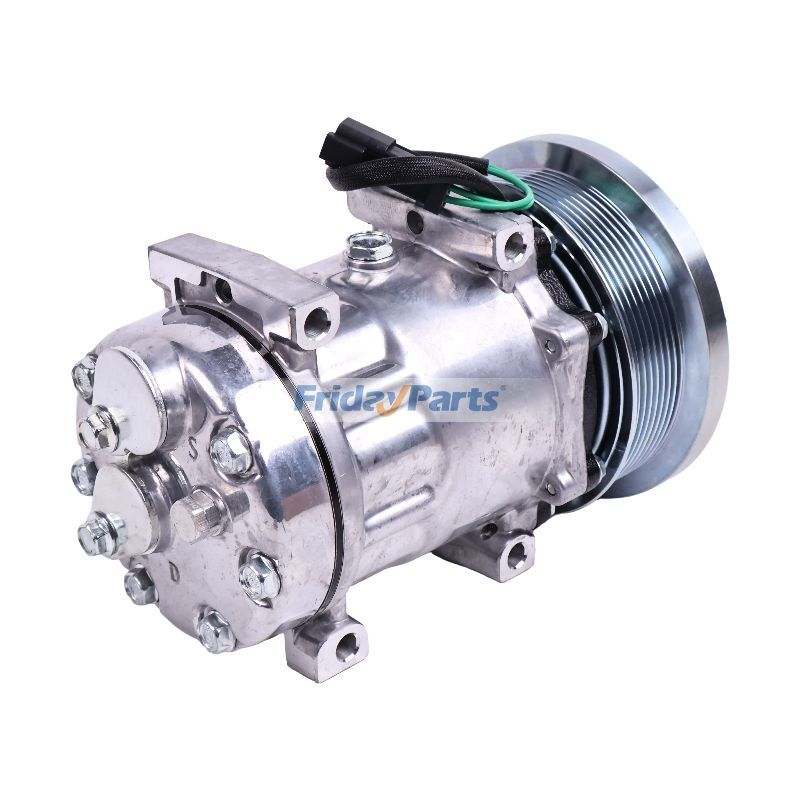

SD7H15 A/C Compressor 338-9100 for Caterpillar CAT Engine C32 3516B Loader 990K 992K 993K 994K
Type:Air Conditioner Compressor, Air Conditioning Compressor
Replace Part Number:
CA3389100, 338-9100, 3389100
Specification:
Sanden Numbers: 4291, 4291U1
Compressor Family: SD7H15
Style: Enhanced Sealed Heavy Duty
Compressor Mount Type: Direct
Rotation Direction: CW
Cylinder Head: 4095
Port Angle: Horizontal
Head Port Style: Pad
Clutch Diameter: 133 mm ~ 5 and 1/4 inches
Belt Type: Serpentine
Number of Grooves: 8
Voltage: 24
Coil Connector: 2 Wire Deutsch
Coil Position: 12 O'clock
Oil Type: SP15 or PAG 100
Oil Qty: 180cc
Refrigerant: R134a
Fit for Caterpillar CAT Engine:C32, C27, 3516B, 3516C
Application:
Fit for following models:
Caterpillar CAT Wheel-Type Loader:990K, 992K, 993K, 994K
Caterpillar CAT Wheel Dozer:844K, 854K
Compatible Model Brand
|
Model Number
|
Replacement Part Number
|
For CAT
|
990K, 992K, 993K, 844K, 854K, 994K
|
Compatible Engine Brand
|
Engine Number
|
Replacement Part Number
|
For CAT
|
C27, C32, 3516B, 3516C
|
