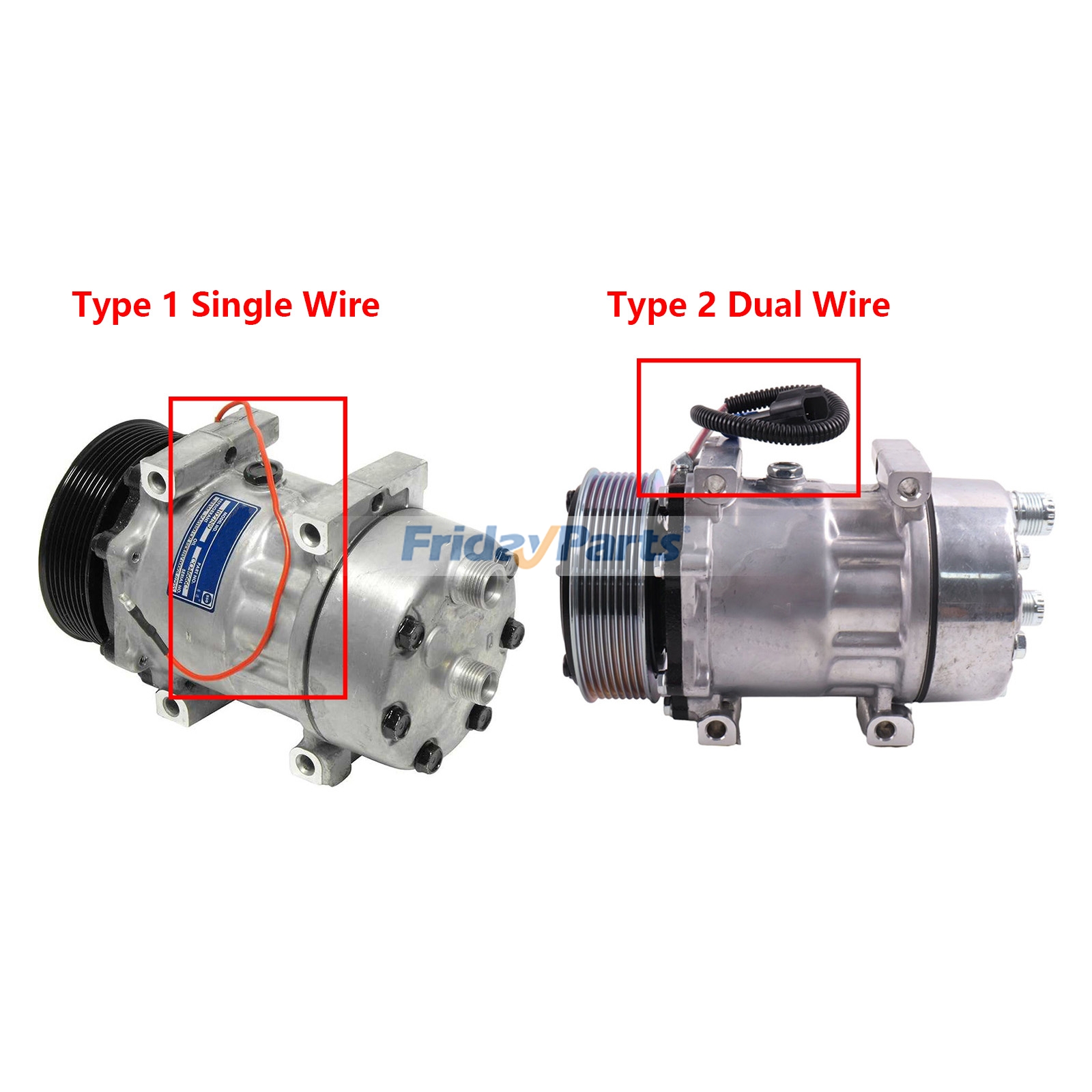

12V 8PK SD7H15 A/C Compressor 4666 4667 4022 4391 4090 for Ford F650 F750
Model Name: A/C Compressor, Air Conditioner Compressor, Air Conditioning Compressor
Replacement Part Number:
Sanden: 4666, 194666,1027N9, 4022, 4094
AC Delco: 1521824
AFI: 0310
Airpro: 204666
Alliance: ABPN83304187, ABPN83304263, ABPN83307973
AP Air Inc.:5095941
Austin Baker:10361641
Bergstrom: 525997
CARLISLE: 3012741
Carrier: 501298
Four Seasons: 57702,58702
Freightliner: ABPN83304742
Frigette: 204879
Global Parts Distributors: 5511580, 6511580, 7511580
Kenworth: 4666SAN, K318103
Kysor: 1401117
MEI: 5707
NAPA: 967215, TEM967215
Omega: 2004090, 2010089, 2010089AM, 2010209
Paccar: 4666SAN, P318103
Ranshu:14SD4666, 14SD4666NC
Red Dot: 75R81502, 75R84472, RD5113260P
TTAC: 3004478
Volvo: 85100866
Other Replace Part Number:
RD-5-10285-0P, ABP-N83-304742, ABP-N83-304263, ABP N83 04973, M5X0182, RD5102850P, ABPN83304742, ABPN83304263, ABPN8304973, F69-6003-114, F696003114, 4391, U4391, 4090, 5707S, 033418, CO4667C, 618702, 1010901, 1010932, 1010962, 618702, SKI4667, 7512693, 3579878C1, 2004667, LE1085, LE1095, LE1675, 4667, 4667E, 4667S, 4667U, ABPN83304973, CO2239CA, 611043430，5095944, 5095948, 5095941, 50959413, MX0182
Specification:
Volts: 12V
Clutch Diameter: 119mm
No. of Grooves: 8 groove
Belt Type: Serpentine
No. Comp. Cylinders: 7 cyl
Comp. Displacement (ci): 9.5 cu.in.
Factory Oil Charge: 240cc Oil
Oil Type: PAG100
Fitting Port Position: Horizontal
Fitting Style: Male Insert O-Ring #8 & #10
Head Type: KC
Wire Type: 1 Wire Male Bullet
Model: SD7H15HD
Mounting Type: Direct Long
Product Name: Sanden Compressor
Refrigerant Type: R134a
Rotation: CW
Shaft Type: Long Key Shaft
Diode Protection: None
Compressor Family: SD7H15
Application:
Fit for Ford Truck: F650, F750
See Details:
2004-2008 Ford F650 5.9L (w/out Pigtail Connector)
2004-2008 Ford F650 6.0L (w/out Pigtail Connector)
2008-2009 Ford F650 6.7L (w/out Pigtail Connector)
2004-2009 Ford F650 7.2L (w/out Pigtail Connector)
2004-2008 Ford F750 5.9L (w/out Pigtail Connector)
2004-2008 Ford F750 6.0L (w/out Pigtail Connector)
2008-2009 Ford F750 6.7L (w/out Pigtail Connector)
2004-2009 Ford F750 7.2L (w/out Pigtail Connector)
Compatible Model Brand
|
Model Number
|
Replacement Part Number
|
For VOLVO
|
85100866
| |
For Ford
|
F650, F750
| |
For CARRIER
|
501298
| |
For Freightliner
|
ABPN83304742
| |
For Kenworth
|
4666SAN, K318103
| |
For OTHER BRAND
|
4090, 4391, 033418, 14SD4666NC, 4667, 57702, 58702, 204879, 618702, 967215, 1010901, 1010932, 1010962, 1401117, 14SD4666, 2004090, 2004667, 2010089, 2010089AM, 2010209, 3004478, 3579878C1, 4666SAN, 4667E, 4667S, 4667U, 5095941, 5095948, 5511580, 5707S, 6511580, 7511580, 7512693, 50959413, 611043430，5095944, 75R81502, 75R84472, ABP N83 04973, ABP-N83-304263, ABP-N83-304742, ABPN8304973, ABPN83304263, ABPN83304742, ABPN83304973, CO2239CA, CO4667C, F69-6003-114, F696003114, LE1085, LE1095, LE1675, M5X0182, MX0182, P318103, RD-5-10285-0P, RD5102850P, RD5113260P, SKI4667, TEM967215, U4391
|
