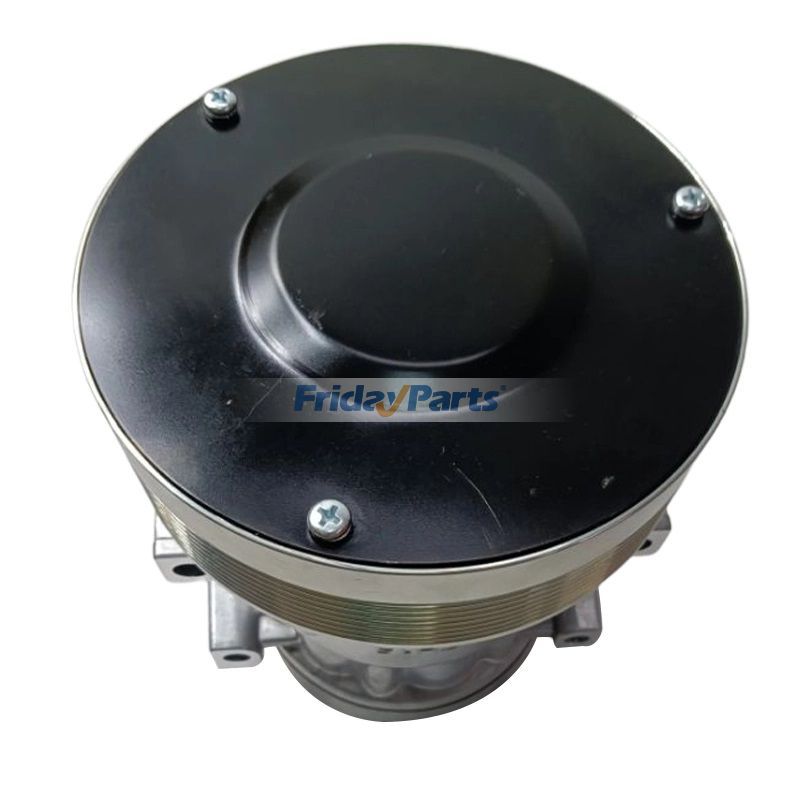

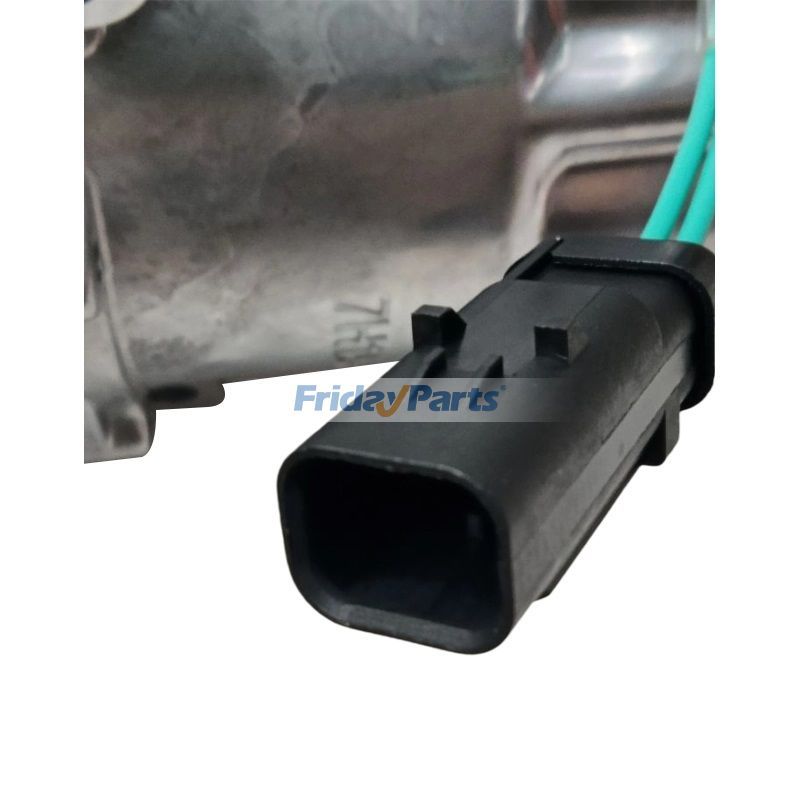

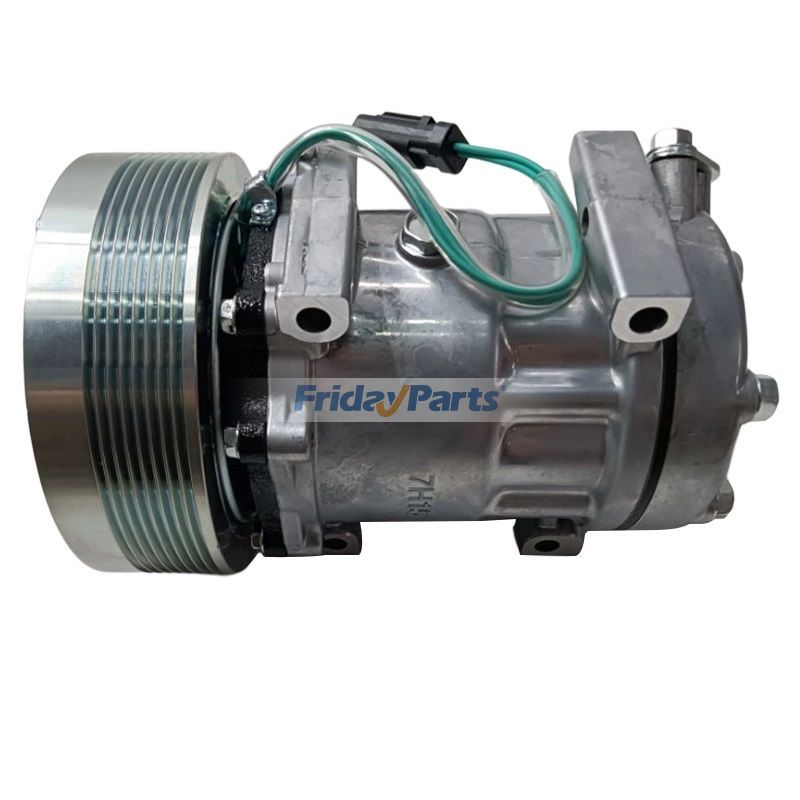

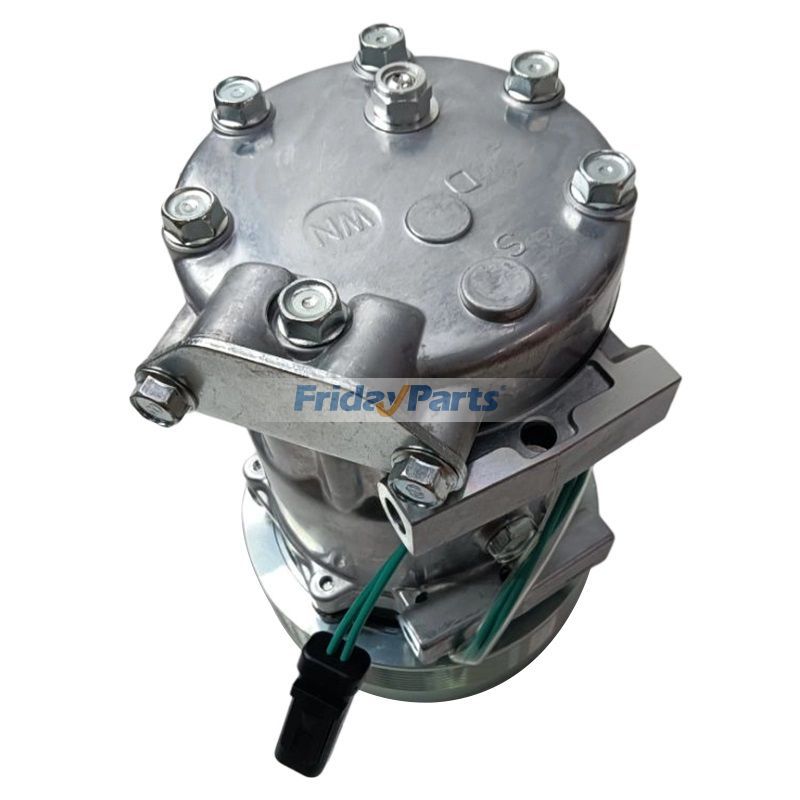

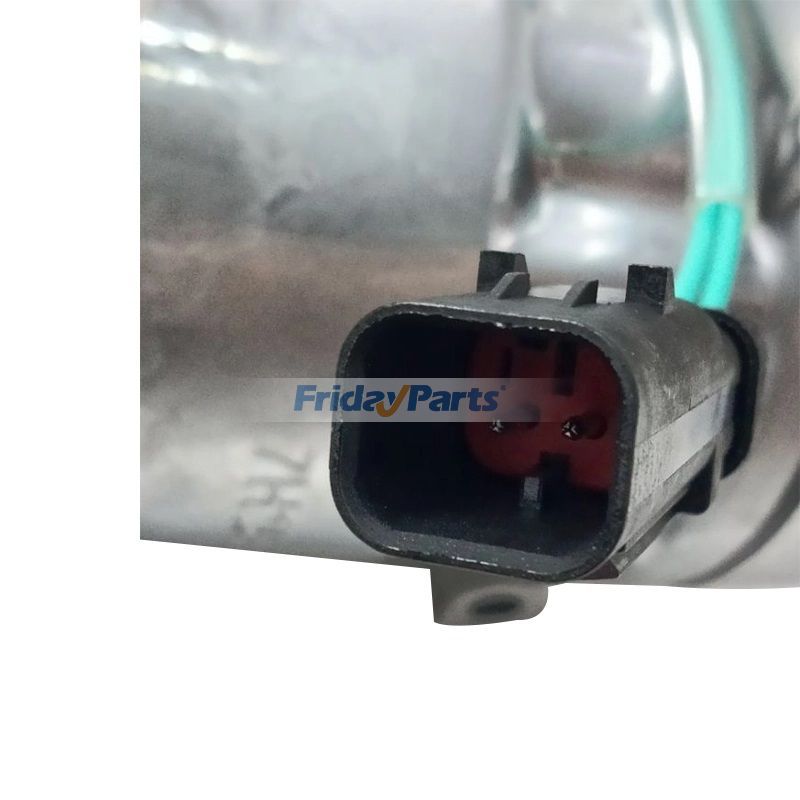

SD7H15 A/C Compressor 461-2805 for Caterpillar CAT Excavator 336F 340F 336E 336FL 340F 314ECR

SD7H15 A/C Compressor 461-2805 for Caterpillar CAT Excavator 336F 340F 336E 336FL 340F 314ECR

Type:A/C Compressor, Air Conditioner Compressor, Air Conditioning Compressor

Replace Part Number:
CA4612805,4612805,461-2805,CA3168826,3168826, 316-8826,5096498,SD7H156063, 6173, 6063

Specification:
Compressor Family: SD7H15
Style: Sealed Heavy Duty
Compressor Mount Type: Direct
Rotation Direction: CW
Cylinder Head: WR
Port Angle: Vertical
Head Port Style: Pad O-Ring
Clutch Diameter: 152mm
Clutch Type: W/ Dust Cover
Belt Type: Serpentine
Number of Grooves: 8
Voltage: 24

Application:
Fit for following models:
Caterpillar CAT Excavator:
336F,336F L,336F XE,336F LXE,340F,336E L,336E LN,336E LH,336E LNH,336E H,336E LH,336F L,336F L,336F L XE,
336F LN XE,336F LN,314E CR,314E LCR
Caterpillar CAT Forest Machine:568

See Details:
336F & 336F L Excavators DSW00001-UP (MACHINE) POWERED BY C9.3 Engine
336F XE & 336F LXE Excavators NAJ00001-UP (MACHINE) POWERED BY C9.3 Engine
336F L & 336F LN Excavators KCS00001-UP (MACHINE) POWERED BY C9.3 Engine
340F Excavator RBD00001-UP (MACHINE) POWERED BY C9.3 Engine
340F Excavators WBX00001-UP (MACHINE) POWERED BY C9.3 Engine
336F L & 336F LN Excavators TJE00001-UP (MACHINE) POWERED BY C9.3 Engine
340F Excavator SGH00001-UP (MACHINE) POWERED BY C9.3 Engine
568 Log Loader Forest Machine L6800001-UP (MACHINE) POWERED BY C9.3 Engine
568 General Forestry GF800001-UP (MACHINE) POWERED BY C9.3 Engine
336F Mobile Hydraulic Power Unit WGF00001-UP (MACHINE) POWERED BY C9.3 Engine
340F Excavators DWK00001-UP (MACHINE) POWERED BY C9.3 Engine
568 Forest Machines BRB00001-UP (MACHINE) POWERED BY C9.3 Engine
336E L & 336E LN Excavators TMZ00001-UP (MACHINE) POWERED BY C9.3 Engine
336E L Excavators BZY00001-UP (MACHINE) POWERED BY C9.3 Engine
336E L Excavators FJH00001-UP (MACHINE) POWERED BY C9.3 Engine
336E & 336E L Excavators CMR00001-UP (MACHINE) POWERED BY C9.3 Engine
336E Mobile Hydraulic Power Unit T3Z00001-UP (MACHINE) POWERED BY C9.3 Engine
336E LH & 336E LNH (Hybrid) Excavators GNY00001-UP (MACHINE) POWERED BY C9.3 Engine
336E L HVG UHD Mobile Hydraulic Power Unit RBS00001-UP (MACHINE) POWERED BY C9.3 Engine
336E H & 336E LH (Hybrid) Excavators HDW00001-UP (MACHINE) POWERED BY C9.3 Engine
336E L Excavators BMH00001-UP (MACHINE) POWERED BY C9.3 Engine
336F L Excavators RKB00001-UP (MACHINE) POWERED BY C9.3 Engine
336F L Excavator SSN00001-UP (MACHINE) POWERED BY C9.3 Engine
336F L XE & 336F LN XE Excavators DFY00001-UP (MACHINE) POWERED BY C9.3 Engine
336F L & 336F LN Excavators KFT00001-UP (MACHINE) POWERED BY C9.3 Engine
340F Excavators EAR00001-UP (MACHINE) POWERED BY C9.3 Engine
336F Mobile Hydraulic Power Unit B3400001-UP (MACHINE) POWERED BY C9.3 Engine
336F L & 336F LN Excavators DKF00001-UP (MACHINE) POWERED BY C9.3 Engine
336F L & 336F LN Excavators NBS00001-UP (MACHINE) POWERED BY C9.3 Engine
315F L Excavator TDY00001-UP (MACHINE) POWERED BY C4.4 Engine
314F Excavator RAF00001-UP (MACHINE) POWERED BY C4.4 Engine
314E CR/SR & 314E LCR Excavators ECN00001-UP (MACHINE) POWERED BY C4.4 Engine
314E LCR Excavator ZJT00001-UP (MACHINE) POWERED BY C4.4 Engine
314E CR Excavator GMD00001-UP (MACHINE) POWERED BY C4.4 Engine
