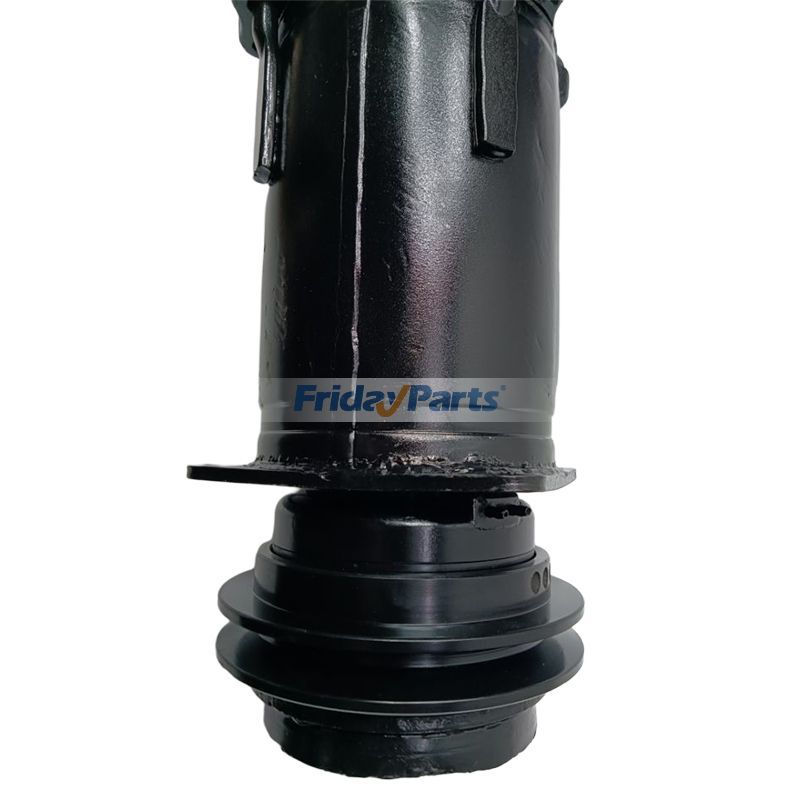

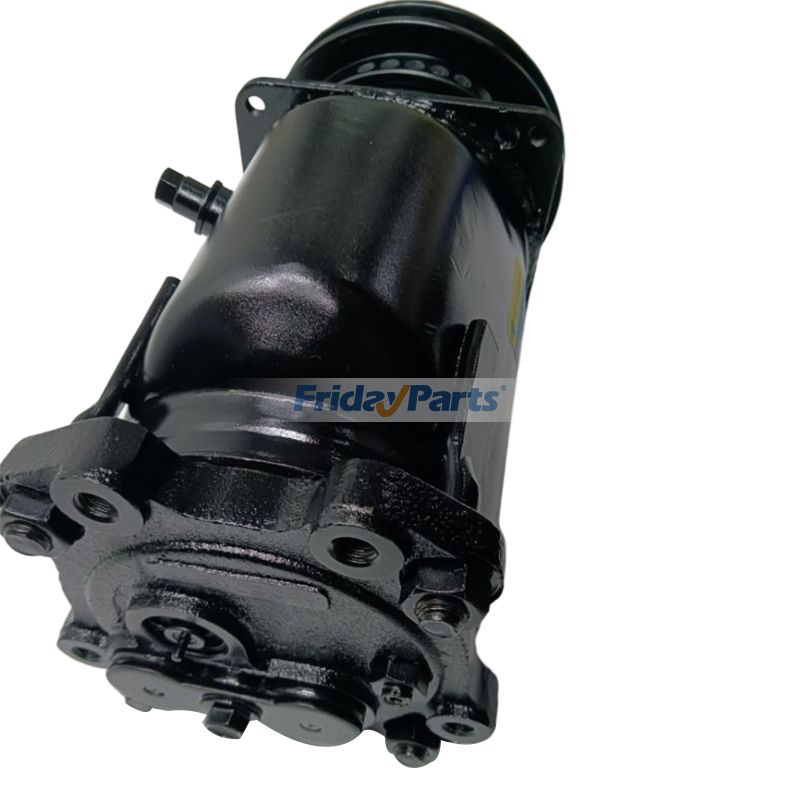

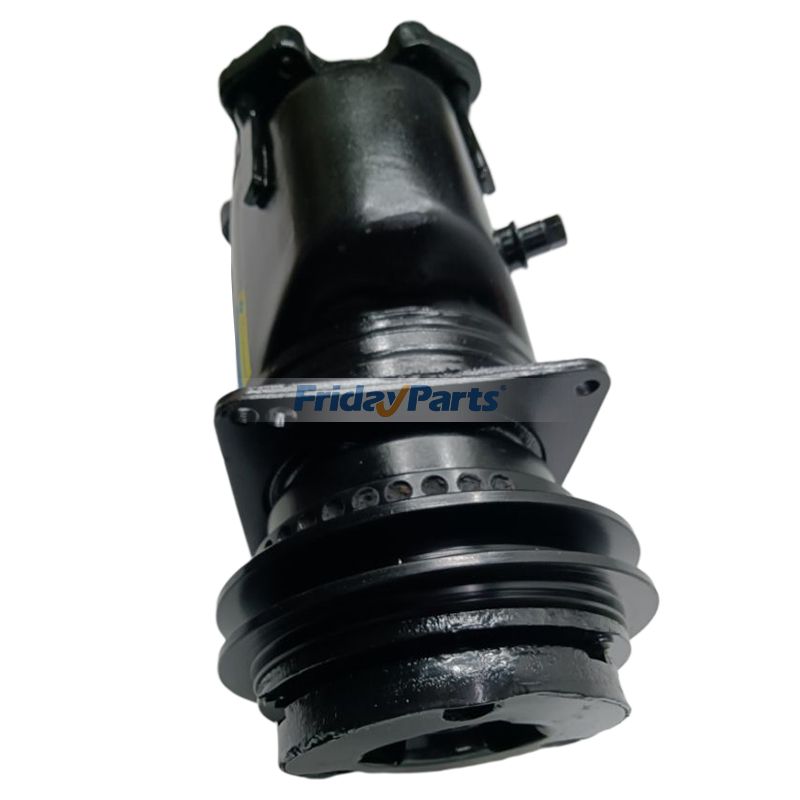

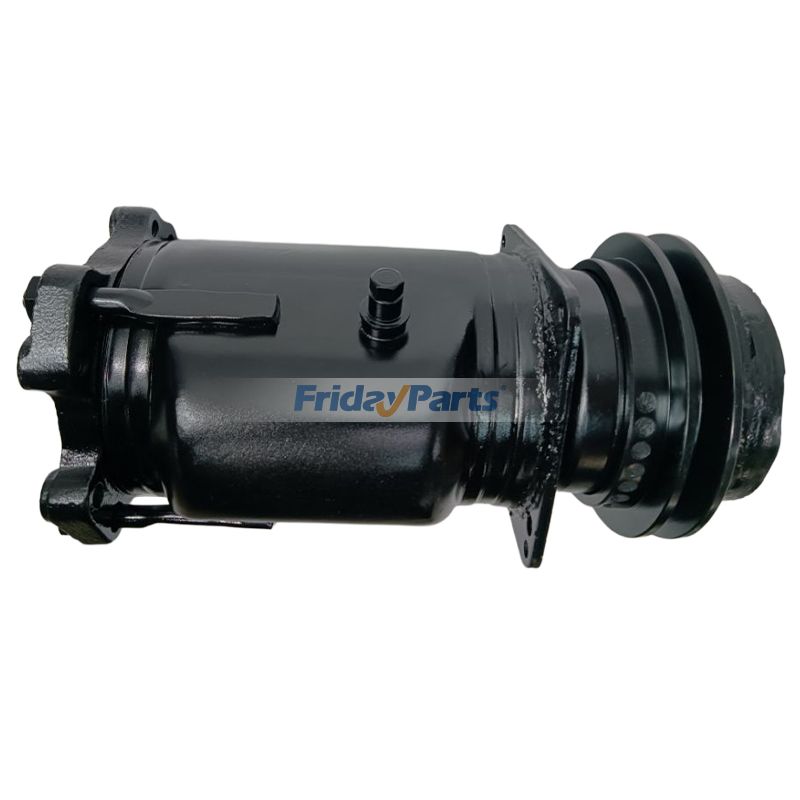

Delphi GM A6 A/C Compressor 7N4296 for Caterpillar CAT Excavator 215 225 229 231D 245 Loader 943 953 963 973 983

Delphi GM A6 A/C Compressor 7N4296 for Caterpillar CAT Excavator 215 225 229 231D 245 Loader 943 953 963 973 983

Type:Air Conditioner Compressor

Part Number:
1138000,CA1138000,113-8000,CA7N4296,7N-4296,7N4296

Specification:
Volts: 24V
Clutch Diameter: 5-1/2”
No. of Grooves: 1 groove
Belt Type: 1/2” Belt
No. Comp. Cylinders: 6 cyl
Comp. Displacement (ci): 12.6 cu.in.
Factory Oil Charge: Check label instructions
Fitting Port Position: Rear
Fitting Style: GM O-ring Pad
Head Type: Superheat Switch Port
Wire Type: 10:00 (LH) Plug
Model: A6
Mounting Type: Standard thread
Oil Type: Mineral
Product Name: Compressor
Refrigerant Type: R12
Rotation: CW
Shaft Type: Keyed shaft
Diode Protection: None
Make: Delphi GM

Caterpillar CAT Engine:3304, 3406, 3306, 3204, D346, 3408, 3208, D348, 3412, 3412C

Applications:Caterpillar CAT Model:
Excavator:215, 215B, 225, 225D, 229, 231D, 245, 245B
Integrated Toolcarrier:IT18, IT18B, IT28, IT28B
Landfill Compactor:816B, 826C
Logger:227
Motor Grader:16G
Soil Compactor:815B, 825C
Track Loader:943, 953, 955K, 955L, 963, 973, 983, 983B
Track-Type Tractor:D10, D4D, D4E, D5, D5B, D8H, D8L, D9L
Tractor:772
Truck:773
Wheel Dozer:814B, 824C, 834B
Wheel Loader:916, 926, 926A, 936, 950B, 950B, 950E, 966D, 980C, 988B, 992, 992C, 916, G926
Wheel Tractor:613, 613B, 613C, 615, 621B, 623B, 631D, 633D, 637D, 639D, 641B, 650B, 651E, 657B, 657E, 666B
