Many people may ponder what to check when buying a Kubota tractor. In this guide, you’ll learn the Kubota L6060 specs, common problems, signs, and easy fixes, enabling you to have a better model and parts purchasing experience.
What Is A Kubota L6060
The Kubota L6060 is a utility tractor from Kubota’s L60 Series for farm use. Powered by a 62-horsepower diesel engine, it can handle a wide range of tasks, including tiling, mowing, loading and other general field work. It’s available with either gear or hydrostatic transmission, giving operators flexibility depending on how they prefer to work. With 4WD capability and a sturdy build, the L6060 is a popular choice for mid-size farms and properties that need more power than a standard compact tractor can offer.
Key Features & Specs of Kubota L6060 Tractor
Key Features
The key features of the Kubota L6060 specs are as follows.
- Cab (Optional)
- Air Conditioning (Optional)
- Foldable ROPS
- Seat Suspension
- Joystick Hydraulic SCV Control
- Tilt Steering
- Cruise control
- Power Steering
- Quick Hitch
- Independent PTO control
Detailed Kubota L6060 Specs
Engine
| Make & Model | Fuel Type | Aspiration | Cooling |
|---|---|---|---|
| Kubota | diesel | turbocharged | liquid-cooled |
| Displacement | Bore/Stroke | Emissions | Emission Control |
| 148.5 ci 2.4L | 3.4×4.0 inches 86 x 102 mm | Tier IV | EGR |
| Power (net) | Power (gross) | Fuel System | Rated RPM |
| 60 hp 44.7 kW | 62 hp 46.2 kW | direct injection | 2600 |
| Starter | Starter volts | ||
| electric | 12 |
Dimensions & Tires
| Ag Front Tires | Ag Rear Tires | Wheelbase | Length |
|---|---|---|---|
| 9.5-16 | 14.9-26 | 75.4 inches 191 cm | 126.4 inches 321 cm |
| Width | Height (ROPS) | Height (cab) | ROPS Weight |
| 67.3 inches (min) 170 cm | 98 inches 248 cm | 92.5 inches 234 cm | 3990 lbs 1809 kg |
| Cab Weight | Ground Clearance | Front Tread | Rear Tread |
| 4365 lbs 1979 kg | 15.4 inches 39 cm | 52.8 inches 134 cm | 52.2/56.3 inches 132/143 cm |
Others
| Transmission | |||
|---|---|---|---|
| Transmission Type | Gears | Wheel Drive | Clutch |
| hydrostatic | infinite forward and reverse (3-range) | 4WD | wet disc |
| Hydraulics | |||
| Pump Flow | Total Flow | Steering Flow | |
| 9.4 gpm 35.6 lpm | 14.1 gpm 53.4 lpm | 4.7 gpm 17.8 lpm | |
| Tractor Hitch | |||
| Rear Type | Control | Rear Lift (at 24″/610mm) | |
|
I |
position control, draft control optional | 2976 lbs 1349 kg | |
| Power Take-Off | |||
| Rear PTO | Rear PTO Type | Mid PTO | Mid PTO Type |
| independent | 540 (1.375) | optional | 2000 |
| Electrical | |||
| Ground | Charging System | ROPS Charging Amps | Cab Charging Amps |
| negative | alternator | 45 | 60 |

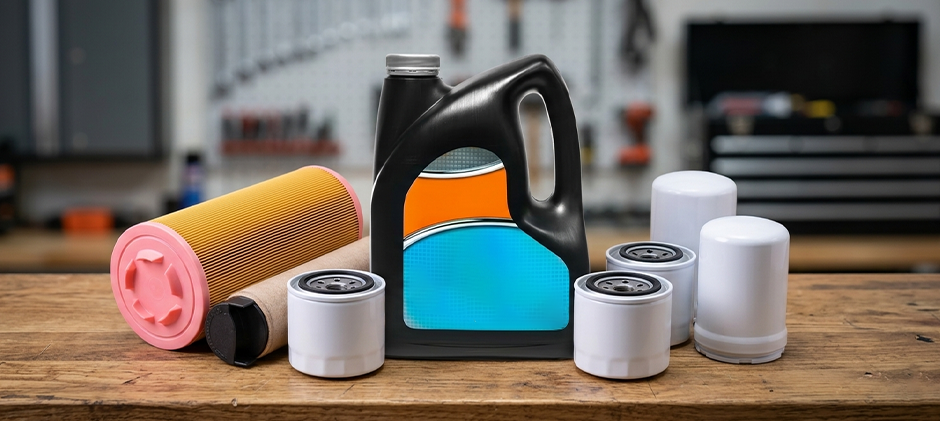

Common Replacement Parts & Maintenance for Kubota L6060 Tractor
| Parts | Part Numbers | Notes |
|---|---|---|
| Fuel filter | 1J800-43172 | Replace every 200 hours |
| Hydraulic Filter | HHTA0-37710 | Replace at 50 hours initially |
| Oil Filter | HH164-32430 | Replace every 400 hours |
| Maintenance Filter Kit | TD270-93230,HH164-32430,HHTA0-37710,1J800-43170 | Recommend replacing altogether |
| Glow Plug (4 pcs) | 1G852-65510 | Recommend replacing the whole set |
| PTO Solenoid | TD170-59893 | Confirm 12V at the connector before replacing |
Kubota L6060 Common Problems, Causes & Easy Fixes
Problem #1: DPF Clog/ Warning Lights
The DPF/ emission issue is the most common complaint for the L6060 tractor. The Tier 4 DPF requires active regeneration cycles to burn off accumulated soot. Operators who don’t understand the regen system end up with clogged filters, fault codes and huge bills.
Common Causes: Short run cycles under 30 minutes, frequent idle use, and ignoring the amber warning light all prevent passive regeneration from completing.
Fixes:
- Let active regen complete. When the amber warning light comes on, run the engine at high RPM (around 1500–2000) for 20 to 30 minutes without stopping.
- Use the manual regen function. If passive regen isn’t keeping up, initiate a forced regeneration using the dash button. Refer to your operator’s manual for the exact procedure.
- Change your operating habits. Avoid short-run cycles under 30 minutes and excessive idling. Longer, higher-load runs allow the DPF to self-clean naturally.
- Turn to professional DPF cleaning. If fault codes persist after regen attempts, have the filter professionally cleaned or inspected by a Kubota dealer.
- Replace DPF. In severe cases where the filter is beyond cleaning, replacement is the only option.
See When and How to Clean A DPF Filter here.
Problem #2: HST Transmission Jerking & Slipping
Many users may have encountered an unnerving jerking or lurching sensation at low speeds during precision loader work or slow creeping. The tractor may also drift backward on slopes with the pedal in neutral.
Common Causes: This is a solenoid or sensor issue in most cases, not a transmission rebuild.
Fixes: You can swap the forward and reverse solenoids for quick diagnosis. If the jerking moves to the opposite direction of travel, the original solenoid is confirmed bad. The steps involve:
- Locate the forward and reverse solenoids on the HST pump body
- Label both connectors before disconnecting
- Swap solenoids to opposite positions
- Test drive — if jerk now occurs in reverse (was forward), the solenoid is confirmed faulty
- Replace faulty solenoid — parts run $100–200 from Kubota dealers or online
Problem #3: PTO Won’t Engage
A third common problem of the L6060 Tractor is that the PTO won’t engage. The Kubota L6060 runs rear PTO at 540 RPM (at 2,400 engine RPM) and mid-PTO at 2,000 RPM (at 2,430 RPM).
Common causes: When the PTO won’t spin despite the switch showing 12V, the solenoid is the first to blame and requires changing. Also, you should consider clutch slippage and low hydraulic pressure as the secondary causes.
Fixes: Before you replace your solenoid, you can follow these steps:
- Test for 12V at the PTO solenoid connector with the switch engaged
- Replace the solenoid if 12V is present but no spin
- Trace to the PTO switch, fuse, or safety switch wiring if there is no 12V
- Check the air ride seat tilt switch and if the seat tilts forward, the stationary PTO is disabled.
Conclusion
