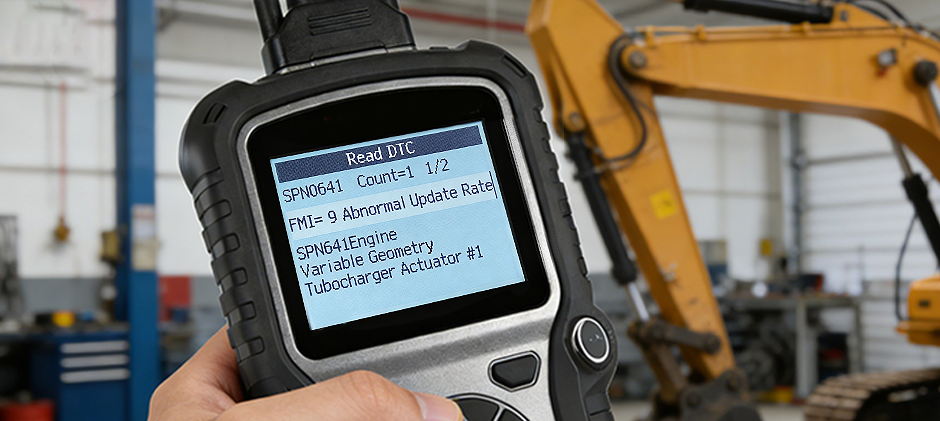

The fault code SPN 641 FMI 9 indicates that communication has been lost between your Engine Control Module (ECM) and the Variable Geometry Turbocharger (VGT) Actuator. Because the ECM is no longer receiving a signal from the actuator, the turbocharger defaults to a fixed, “safe” position, resulting in a severe drop in engine power and making your machine feel sluggish.
What Does SPN 641 FMI 9 Mean on My Machine?

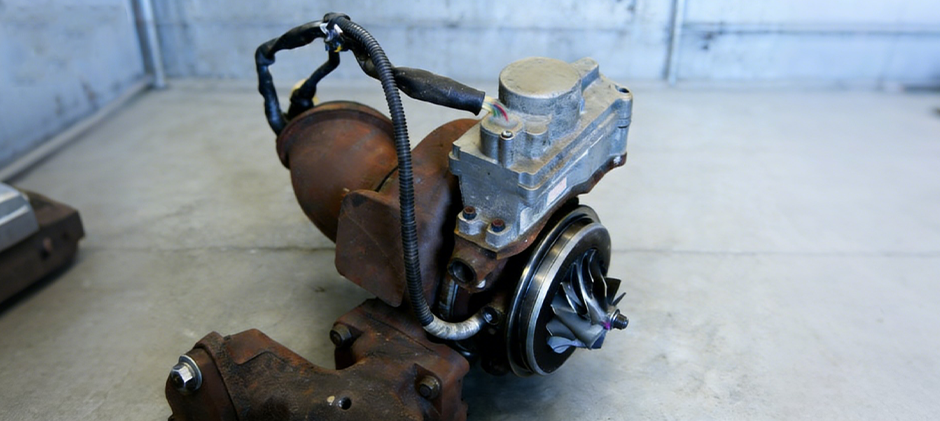

- SPN 641: This shows which part has a problem. SPN 641 points to the Variable Geometry Turbocharger (VGT) actuator. It’s the smart motor that adjusts the turbo to give the engine the best power and efficiency.
- FMI 9: This tells you what kind of problem it is. FMI 9 means “Abnormal Update Rate,” which is a simple way of saying the ECM has lost communication with the actuator.
Your machine’s Engine Control Module (ECM) is always talking to the VGT actuator over a network called the J1939 data link. If the ECM stops getting signals from the actuator, even for a moment, it sets off this fault code.
What Happens When This Fault Code Appears?
As soon as the ECM notices it’s lost communication, it acts fast to protect the engine. Here’s what happens:
- Red STOP ENGINE light comes on: This is your ECM warning you that something serious is wrong that could hurt the engine.
- VGT goes to a default “safe” position: The actuator opens the turbo vanes fully.
This “safe” mode stops the engine from over-boosting, but it also really hurts performance. With the turbo wide open, it can’t build boost well at low speeds. For the operator, this feels like a big drop in power, slow throttle response, and the machine acting sluggish. Especially when digging, lifting, or going uphill.
What Are the Common Causes of This Communication Failure?
This fault just means the ECM and VGT actuator aren’t talking to each other — like a dropped phone call. The problem is almost always in the wiring or connections between them. Off-road machines work in tough conditions: constant shaking, dirt, moisture, and extreme temperatures. So wiring and connection issues are super common.
J1939 Data Link Issues
The J1939 data link is the two-wire path that lets your engine parts communicate. If this path is broken or blocked, signals won’t go through.
- Damaged wires: The two J1939 wires between the ECM and VGT actuator might be cut, pinched, or corroded.
- Missing or bad terminating resistors: This is really common but easy to miss. The J1939 system needs a 120-ohm resistor at each end to keep signals clear. Together they should read 60 ohms. If one is missing or broken, communication gets messy and triggers this fault.
VGT Actuator Power Problems
The actuator is a motor — it needs steady power to work and talk. If power from the ECM is inconsistent, it won’t run right.
- Broken power or ground wire: If the power or ground wire in the harness is damaged, the actuator stops working completely.
- Low voltage: If the ECM has an internal issue or the circuit has high resistance, voltage may be too low for the actuator.
Bad Connectors
Don’t ignore bad connections. The connectors for the VGT actuator and engine harness are exposed to dirt and moisture.
- Corroded or bent pins: Moisture and dirt cause corrosion; vibration can push pins out or bend them.
- Loose connection: A plug that’s not fully clicked in can cut communication off and on, especially when the machine is shaking.
Failed VGT Actuator
Sometimes the part itself is just worn out. The VGT actuator works nonstop with a motor and electronics inside. Over time it fails. If the internal circuit board is damaged, it can’t talk to the ECM anymore.
Faulty ECM
This is the least likely cause, but it can happen. The part of the ECM that sends signals to the actuator might break. But always check wiring, connectors, and the actuator first before blaming the ECM.
How Can We Diagnose the Problem?
If you’re dealing with SPN 641 FMI 9, follow these steps to find the problem. Before you start, park the machine on level ground, lower all attachments, and turn the engine off.
Step 1: Visual check
Take a close look at the wiring harness from the ECM to the turbo. Check for any clear signs of damage:
- Wires that are rubbed through or chafed.
- Signs of melting from contact with hot exhaust components.
- Connectors that are loose, cracked, or full of dirt and oil.
Step 2: Check the J1939 Data Link Resistance
This is the most important diagnostic test for this fault code. You will need a digital multimeter.
- Turn the key switch to OFF.
- Find the VGT actuator connector on the turbo and unplug it.
- Find the two J1939 pins on the harness side (usually a twisted pair, often yellow and green).
- Set your multimeter to Ohms.
- Measure resistance between those two pins.
What you should see: about 60 ohms
- ~120 ohms: One resistor is missing or the circuit is open. The actuator has one built in, so the other is somewhere else in the harness. You’ll need to find the break or replace the resistor.
- 0 ohms or very low: There’s a short between the wires. Check the harness for damaged spots where wires may be touching.
Step 3: Check power and ground
If the resistance looks good, check if the actuator is getting power.
- Keep the actuator unplugged.
- Turn the key switch to ON.
- Set your multimeter to DC volts.
- Check for battery voltage at the correct pins (use the wiring diagram).
- Then check for a good ground on the return pins.
If you’re missing power or ground, there’s a break in the wiring that needs fixing.
Step 4: Check the main parts
If wiring, data link, power, and ground all look good, the problem is likely one of these:
- VGT actuator: Most likely the issue. Replacing it is usually the next step.
- ECM: Less common. Only consider this if a new actuator doesn’t fix the problem.
Conclusion
The SPN 641 FMI 9 means the ECM has lost communication with the VGT actuator. Most of the time, the problem isn’t the actuator itself — it’s bad wiring, loose connectors, or a missing terminating resistor in the J1939 data line.
We don’t recommend running the machine with this code active. The engine will go into limp mode, so you’ll lose power badly. Performance and fuel economy will both suffer. Worse, this communication issue can hide other problems and put extra stress on the engine, leading to much higher repair costs later.
