An SCR System Fault means there is a problem in your machine’s exhaust cleaning system. This warning is important because if it’s ignored, your engine could lose power or even stop completely. The following guide explains what the SCR system does, why problems happen, and simple steps you can take to get your machine running normally again.
What Is an SCR System and How Does It Work?
The SCR (Selective Catalytic Reduction) system helps your engine reduce harmful exhaust gases. Its main job is to remove nitrogen oxides (NOx), which are bad for the environment. The system works by spraying Diesel Exhaust Fluid (DEF) into the hot exhaust. This liquid mixes with exhaust and passes through a catalyst, turning NOx into clean nitrogen and water vapor.
The main parts of the SCR system are the DEF tank, DEF pump, DEF injector (also called a doser), the SCR catalyst, and several sensors that monitor how well the system works.

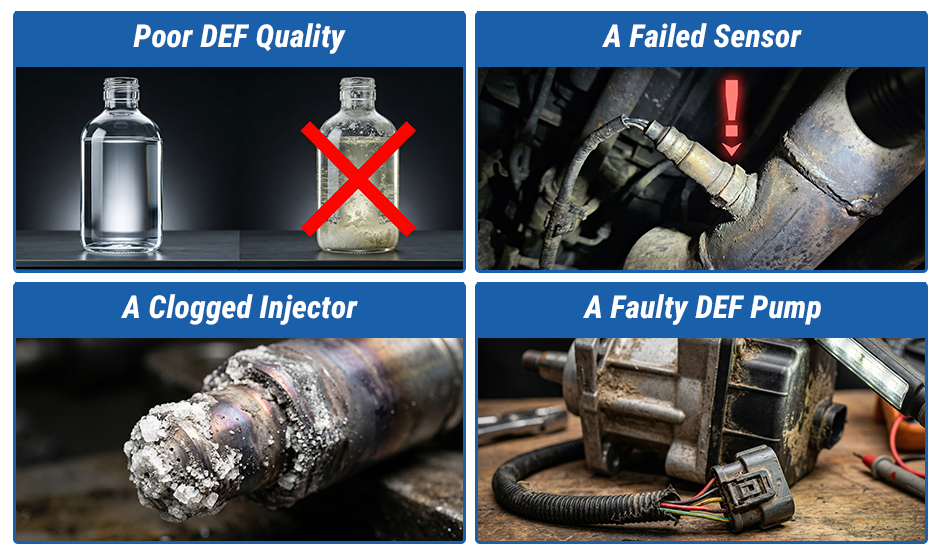

4 Common Reasons for an SCR System Fault
An SCR fault means the computer (ECU) found something wrong inside the system. Most faults come from simple causes, not major failures. Below are the four most common ones.
1. Poor DEF Quality or Level
Bad or old DEF is the number one cause of SCR faults. DEF that has been left open too long or stored in heat can become contaminated and stop working properly. Always use fresh, clean DEF. Of course, running the tank dry will also cause a fault.
2. A Failed Sensor
The SCR system depends on sensors to monitor gas levels and temperatures. These include NOx sensors, DEF level and quality sensors, and temperature sensors. If one fails, the ECU receives wrong information and sets a fault code. Replacing a bad sensor usually clears the error.
3. A Clogged DEF Injector or Filter
When DEF meets air, it can form crystals. These crystals build up around the injector and filters. Over time, this blocks the flow of DEF, stopping the cleaning reaction and triggering a fault. Regular inspection prevents this.
4. A Faulty DEF Pump
The DEF pump moves fluid from the tank to the injector. If it loses pressure or stops completely, the ECU knows DEF is not being delivered, and a fault appears. A weak pump will cause repeated problems until it is replaced.
What Are the Symptoms of an SCR Fault?
You’ll notice clear warning signs when an SCR system fails. The first is warning lights on the dashboard—the check engine light or a special DEF/SCR light may come on. Next comes engine derate, which means power loss. The ECU does this on purpose to keep emissions within limits and to make sure operators fix the fault. If that warning is ignored, the last stage is a final derate or shutdown. The machine will slow to only a few miles per hour, and some models may not restart until the SCR system is repaired.
How to Respond to an SCR System Fault
Fixing an SCR fault quickly prevents downtime. Here’s a simple process to follow.
- Check the DEF Tank First. Start by looking at the DEF tank. Make sure it’s not empty and that the fluid is clean and fresh. If the DEF is older than a year or looks cloudy, drain it and fill it up with new fluid.
- The “SCR Fault” message is only general. Use a diagnostic tool to read the fault code numbers (SPN and FMI). These tell you exactly which part has failed — for example, a NOx sensor, injector, or pump. A common related code is P20EE, which points to catalyst efficiency.
- Perform a Visual Inspection. Look for easy-to-see signs of trouble. White crystals around the injector mean DEF buildup. Check all hoses and fittings for leaks. Also, look at the wiring and connectors for damage or corrosion.
- Replace the Identified Component. Once you know what’s wrong—like a failed sensor or pump—replace that part with a good one. After replacing it, clear the fault codes with your diagnostic tool and run the engine to confirm the warning is gone.
Conclusion
An SCR fault is serious but fixable if you act early. The key is to start with the basics like DEF quality, use diagnostic codes to pinpoint the fault, and inspect for visible issues before replacing parts. With a careful, step-by-step approach, most issues can be solved easily.
