This guide provides the technical data and professional insight required for the precise maintenance and part identification of the John Deere X300 Select Series. As a technical specialist, I have compiled these specifications to help owners ensure machine longevity and safety. Use this lookup guide to identify correct engine components, transmission fluids, and critical safety recall information for your lawn tractor.
What Are The Engine Specifications For The John Deere X300?
The John Deere X300 utilizes high-performance, air-cooled V-twin engines manufactured by Kawasaki. Depending on your specific model year, your unit will be powered by either the 17-hp FH491V or the 18.5-hp FS541V/FS600V variants. These iTorque™ Power Systems are engineered for durability, featuring cast-iron cylinder liners, overhead valves (OHV), and full-pressure lubrication with a replaceable filter to extend engine life under heavy workloads.
| Specification | Kawasaki FS541V / FS600V | Kawasaki FH491V |
|---|---|---|
| Displacement | 603 cc (36.8 cu in.) | 472 cc (28.8 cu in.) |
| Bore/Stroke | 73 x 72 mm (2.87 x 2.83 in.) | 68 x 65 mm (2.68 x 2.56 in.) |
| Spark Plug Gap | 0.76 mm (0.030 in.) | 0.76 mm (0.030 in.) |
| Oil Capacity | 1.7 L (1.8 qt) | 1.7 L (1.8 qt) |
For fuel, John Deere recommends 87 octane unleaded gasoline. While ethanol blends up to 10% (E10) are acceptable, higher concentrations should be avoided to prevent fuel system degradation.
Transmission Care for John Deere X300 Specs Lookup
The X300 features the Tuff Torq K46 (Kanzaki) variable speed hydrostatic transaxle. While many manufacturers label these as “sealed” or “non-serviceable” units, proactive maintenance is vital. In heavy-duty applications, the internal fluid often becomes dark and develops a burnt odor after 150–200 hours, leading to a distinct “transmission whine” and loss of performance.
To prevent thermal breakdown and ensure internal component protection, I recommend a fluid change every 200 hours. While 10W30 was the factory fill, 5W50 synthetic motor oil is the current recommendation for superior thermal stability and smoother operation. This often raises the question, “Is transmission fluid the same as engine oil?” For this specific application, the synthetic motor oil provides superior protection.
The travel speeds at full engine RPM are:
- Forward: 0-8.6 km/h (0-5.3 mph)
- Reverse: 0-6.4 km/h (0-4.0 mph)
Why Is The X300 Cooling Fan Recall Critical For Safety?
A voluntary safety recall was issued for certain John Deere X300, X300R, and X304 series tractors due to a significant fire hazard. The engine cooling fan mounted atop the Kawasaki engine can break during operation. If the fan fails, the engine will rapidly overheat, potentially melting surrounding plastic components and igniting a fire.

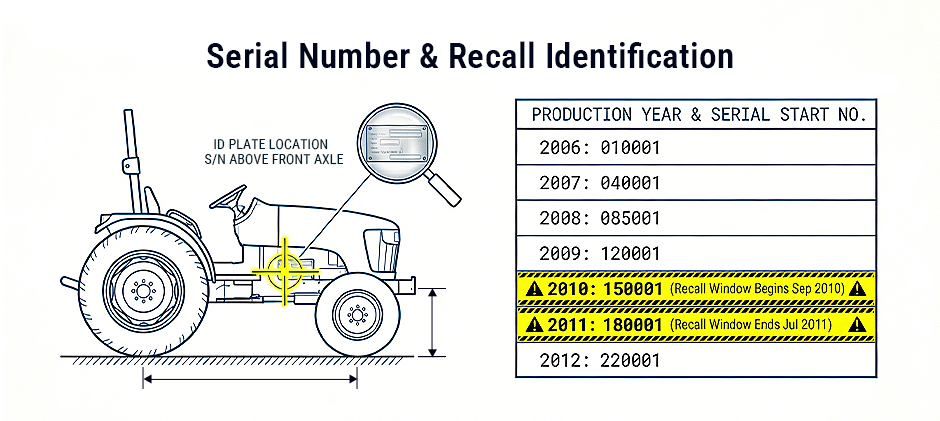

If you’re unsure how to find your tractor’s model year and information, our John Deere serial number lookup guide can help you locate it. Stop usage immediately if your tractor falls within the following serial number ranges:
- 1M0X300B++M180001 thru 1M0X300B++M180600
- 1M0X300C++M180001 thru 1M0X300C++M208330
- 1M0X300E++M180001 thru 1M0X300E++M180718
- 1M0X300F++M180001 thru 1M0X300F++M180888
- 1M0X300G++M180001 thru 1M0X300G++M183700
- 1M0X300H++M180001 thru 1M0X300H++M180145
- 1M0X300J++M180001 thru 1M0X300J++M180106
- 1M0X304A++M180001 thru 1M0X304A++M184936
- 1M0X304B++M180001 thru 1M0X304B++M180696
- 1M0X304C++M180001 thru 1M0X304C++M180054
Affected owners should contact a John Deere dealer for a free cooling fan replacement.
7 Essential Parts For Your X300 Maintenance Schedule
Consistent part replacement is the only way to guarantee the reliability of your machine. When performing a John Deere X300 specs lookup for parts, ensure you select the number corresponding to your specific engine model:
- Engine Oil Filter: AM107423 (FH491V) or AM125424 (FS541V).
- Fuel Filter: AM116304 (In-line).
- Air Filter Elements:
- FH491V: MIU10999 (Foam) and MIU10998 (Paper).
- FS541V: MIU12554 (Foam) and MIU12555 (Paper).
- Traction Drive Belt: M144044.
- Mower Deck Belts: M172924 (Primary) and M154958 (Secondary).
- Spark Plugs: TY6081 (FH491V) or M805853 (FS541V).
- Battery: 12-volt with 160 CCA (early serial numbers up to -250000) or 195 CCA (late serial numbers 250001-).
What Are The Dimensions And Attachment Options?
The X300 platform is highly versatile, supporting several Edge Xtra mower deck widths and seasonal attachments.
- Mower Deck Options: 38-inch, 42-inch, 48-inch, and 54-inch mid-mount decks.
- Front Attachments: 44-inch front blade and 44-inch snowblower. For winter preparation, you can learn how to install a snow blade on the John Deere X300 with our guide.
- Tire Specs: Front (15×6.00-6) and Rear (20×10.00-8).
Physical Footprint: The standard overall length of the tractor is 72 inches. However, models with a rear-discharge setup (such as the X300R) or those equipped with heavy attachments/baggers have a total length of approximately 98 inches (249 cm). The unit has a height of 43 inches and a base weight of approximately 501 lbs (less mower deck).
Conclusion
Performing a regular John Deere X300 specs lookup is a critical responsibility for any owner. From ensuring your Kawasaki engine has the correct air filter to verifying that your serial number is not subject to a fire hazard recall, technical accuracy is the key to machine safety and efficiency.
