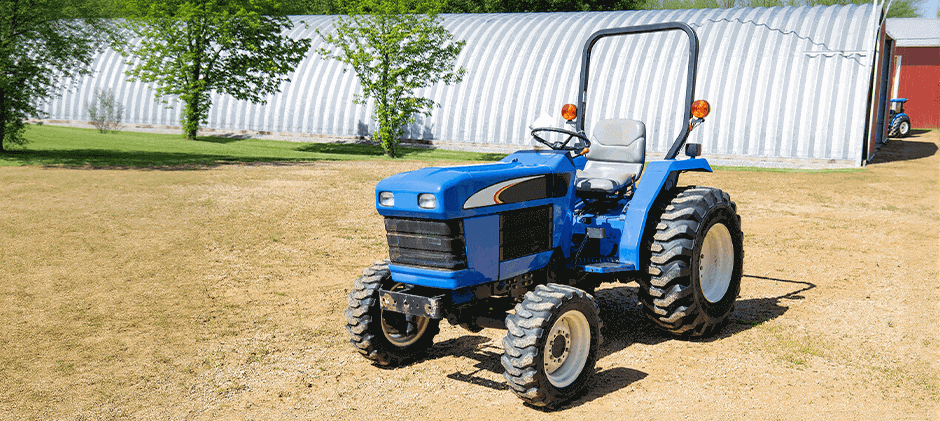

The New Holland TC30 is a compact utility tractor known for its durability and versatility, produced from 2001 to 2008. Its simple design and reliable performance make it a favorite on the used market. As these tractors age, owners and buyers need to understand their features, common issues, and maintenance needs. This guide offers key insights to help you keep your TC30 in top shape.

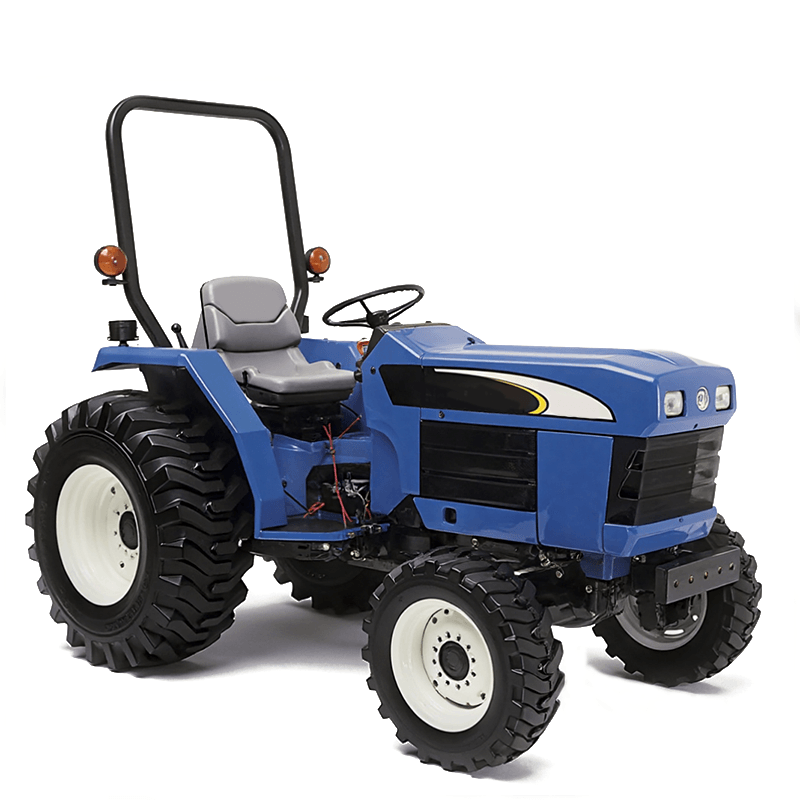

About New Holland TC30 Tractor
Compact Yet Powerful Design
The TC30 offers an ideal balance between maneuverability and performance, making it perfect for small farms and large properties alike.
Performance Capabilities
-
Capable of handling tough mowing tasks, even in dense fields.
-
Strong enough to operate front-end loaders for material transport.
-
Compatible with various PTO-driven implements for versatile use in agriculture and property maintenance.
-
Ideal for tasks requiring frequent speed or direction changes, such as front-end loader work.
-
Preferred by users who value mechanical durability and straightforward operation.
New Holland TC30 Tractor Specs
Engine
| Engine Detail | Shibaura N843 Diesel 3-Cylinder Liquid-Cooled |
|---|---|
| Displacement | 30 hp 22.4 kW |
| Power | 30 hp 22.4 kW |
| Rated RPM | 2600 |
| Starter volts | 12 |
Transmission
| Type | gear |
|---|---|
| Gears | 9 forward and 3 reverse |
Dimensions
| Wheelbase | 63 inches 160 cm |
|---|---|
| Length | 109 inches 276 cm |
| Width | 54.3 inches 137 cm |
| Height | 82.4 inches 209 cm |
| Weight | 2193 lbs 994 kg |
Attachment
| Attachment overview |
|---|
| 60″ mid-mount mower deck |
| 72″ mid-mount mower deck |
| Snowblower |
| Blade |
| Front-end loader |
| Backhoe |
Source from:www.tractordata.com
Common New Holland TC30 Problems
Hydraulic System Issues
The TC30’s hydraulic system is essential for steering, loader control, and the three-point hitch. Common issues include:
- Slow or Weak Loader Movement: Often caused by low hydraulic fluid, worn lift cylinder seals, or a failing hydraulic pump.
- Hydraulic Leaks: Typically found around cylinder seals, fittings, or o-rings. Even small leaks can cause fluid loss and damage.
- Loader Droop: Loader arms may slowly lower when the tractor is off, usually due to internal leaks in the valve or cylinder seals.
Electrical System Malfunctions
Older TC30 tractors often face electrical problems, especially if stored outdoors. Common issues include:
- Safety Switch Failures: Faulty seat, PTO, or neutral gear safety switches can prevent the engine from starting or cause sudden shutdowns.
- Starting Troubles: Corroded battery terminals, a weak starter solenoid, or glow plug issues (important for cold starts) are frequent causes of hard starts.
PTO Engagement Problems
Some TC30 owners report issues with the PTO system:
- Hard to Engage: A stretched cable or misaligned linkage can make the PTO difficult to activate.
- Won’t Disengage: More serious cases may point to internal PTO clutch problems, which can be dangerous if left unresolved.
New Holland TC30 Tractor Replacement Parts
| Part Name | Part Number |
|---|---|
| Fuel Shut-Off Solenoid | 185206080, 185206081, 185206082, 185206083, 185206084, 185206085, SBA185206085, 87761614, 281552A1, 328605A1, SBA185206084, 1447884, 87780758, VF185206082, 1100-0224, 11000224 |
| Water Pump | SBA145017790, SBA145017721, SBA145017780, SBA145017730 |
| Thermostat | SBA145206182, 145206182, 301577A1, 307433A1, 322584A2, 83986768, 87759905, 87760851, 87761966, 87761967, 87780237, VF145206170, VF145206180, VF307433A1, VF322584A1 |
| Hydraulic Oil Filter | 87300043, 84475483 |
| Filter Kit | C84475542, P551132, 47797858, P552378, 84475483, P551779, 47671640, P550227, 87682998, P821575, 84539215, P822858 |
| Ignition Switch | SBA385201890, 87760272, SBA385201700, 81876686 |
| Hydraulic Pump | 340451060, 83965323, 87761977, 87762346, SBA340451060, SBA340450481, SBA340450480 |
| Glow Plug | SBA185366190 |
| Oil Filter | P551132, 84475542, C6002112110, 4700939068, 9414101541, 1691846, 721150720, 537A0142, 408337A1, 73317380, 86546618CDS, ND148515, 87415600, 87409203, 86402050, 76593189, 76593187, 76593184, 73316806 |
| Safety Switch | 1100-0227, 11000227, SBA385201260, 385201260, SBA385201350, 385201350, 83966402, 83967398 |
| Connecting Rod | SBA115026251, SBA115026250, 115026251, 298923A1, 81865922, 83966577 |
| Fuel Filter Bowl | SBA360710011, 1981529C1, 360710011, 1981528C1, 83924220, SBA360710010, SBA360710020, SBA360710060 |
| Fuel Injection Pump | SBA131017820, SBA131017821R, SBA131017821, 131017820, 131017821, 104134-3071, 1041343071, 9410618461, 9410617973 |
| Water Tank Radiator | SBA310100620, SBA310101170 |
Welcome to explore more New Holland TC30 parts at FridayParts. Our aim is to provide you with high-quality and reliable aftermarket parts for tractors.
New Holland TC30 Maintain Tips
Regular maintenance is the best way to keep your New Holland TC30 running strong and avoid costly repairs. Here’s what to focus on:
Change Fluids and Filters on Time
- Engine Oil: Replace oil and filter as recommended in your manual.
- Hydraulic Fluid: Dirty fluid can damage your pump—change it regularly.
- Fuel Filter: Prevent debris and water from reaching the fuel system.
Inspect Hoses and Belts
- At the start of each season, check for cracks, leaks, or wear. Replace before failure.
Clean Electrical Connections
- Clean battery terminals and grounding points to avoid electrical problems.
Fix Leaks Immediately
- Even small leaks in hydraulic or coolant systems can lead to major damage.
For affordable, high-quality New Holland tractor parts, FridayParts provides a full selection of aftermarket components to support your routine maintenance.
Conclusion
The New Holland TC30 has rightfully earned its status as a dependable compact tractor. Its combination of power, simple operation, and versatility makes it a valuable asset for any property owner. By understanding its design, being aware of common potential problems, and committing to a proactive maintenance schedule with reliable parts, you can ensure your TC30 remains a powerful workhorse for many more years of service.
