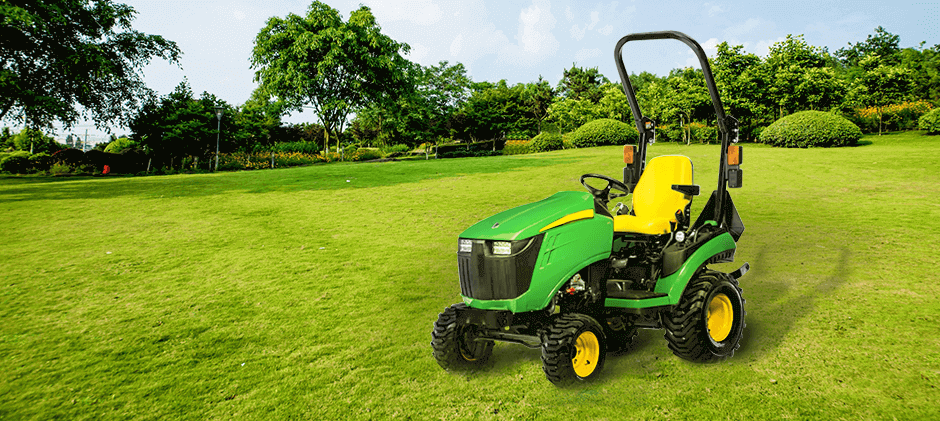

Are you looking for a powerful compact tractor? The John Deere 1025R might be your go-to option! The sub-compact workhorse packs a 23.9 HP Yanmar diesel engine, 4WD capability, and a 1,556-lb base weight, making it ideal for small farms, landscaping, and property maintenance. For years, the machine has been credited for easy operation. Due to the special structure design, the JD 1025R appears like a mid-sized lawn, thus, the versatility is incomparable. Now, let’s reveal the machine and dive into JD 1025 specs, and explore more JD parts.
More JD Models Parts Lookup
John Deere 200LC Excavator Info & Parts Lookup
John Deere X320 Lawnmower Info & Parts Lookup
John Deere X300 Mower Info & Parts Lookup
John Deere 420 Tractor Info & Parts Lookup
John Deere 317 Skid Steer Loader Info & Parts Lookup
John Deere 450C Crawler Dozer Info & Part Numbers Lookup
John Deere 60 Tractor Info & Part Numbers Lookup
John Deere 318 Lawn Tractor Info & Part Numbers Lookup
John Deere 75G Mid-Size Excavator Info & Part Numbers Lookup
John Deere 1025R Specs
Engine
The John Deere 1025R is powered by a 23.9 horsepower diesel engine. It is just a powerful machine for small to medium-sized tasks. It is equipped with a 4WD (four-wheel drive) system that enhances traction. These specs make the John Deere 1025R ideal for tasks such as mowing, tilling, snow removal, and light digging. Here are the key specs:
| Manufacturer | Yanmar® |
|---|---|
| Engine model | 3TNV80F-NCJT |
| Engine power (gross) | SAE J1995 rated power: 17.8 kW 23.9 hp 24.2 PS at 3200 seconds |
| Power take-off (PTO) power | 13.6 kW/18.2 hp |
| Rated engine speed | 3200 rpm |
| Type | Diesel |
| Injection pump type | Indirect injection |
| Aspiration | Natural |
| Emissions compliance | Final Tier 4 |
| Cylinders/displacement | Three cylinders: 1.267 L 77.3 cu in. |
| Number of cylinders | 3 |
| Cylinder liners | Cast-in-block |
| Bore and stroke | 80 x 84 mm/3.15 x 3.31 in. |
| Compression ratio | 23.1:1 |
| Lubrication | Pressurized |
| Cooling system | Water pump |
| Air cleaner | Dual element with mechanical restriction indicator |
| Engine torque at rated speed | 53.1 Nm/39.2 lb-ft |
| Fuel tank capacity | 24 L/6.3 U.S. gal. |
Electrical & Fuel System
| Battery size | 500 CCA |
|---|---|
| Alternator (12-V) | 40 amp |
| Starter size | 1.2 kW/1.6 hp |
| Fuel system type | Indirect injection |
Transmission
| Standard transmission | Hydrostatic – two range |
|---|---|
| Left-hand reverser | No |
| Final drive | Spur gear |
| Brakes | Wet disc (left-hand pedal) |
| Steering | Power |
| Axle capacity | Front 612 kg 1349 lb Rear 715 kg 1576 lb |
| Creeper | No |
| Cruise control | Standard |
| Differential lock | Yes |
Hydraulics
| Type | Open center |
|---|---|
| Pump rated output | Steering 13.2 L/min 3.5 gpm Implement 13.2 L/min 3.5 gpm 24 L/min 6.3 gpm |
| Pump type | Single gear |
| Maximum operating pressure | 138 bar 2000 psi |
| Draft control sensing | Position control |
| Remote control valves | 3 |
Dimension & Tires
| Wheelbase | 1450 mm/ 57.1 in. |
|---|---|
| Front axle clearance/ Turning radius without brakes | 195 mm/ 7.7 in. outside front tire: 2.51 m/ 8.2 ft |
| Limited slip differential | No |
| Approximate shipping weight (open-station; cab) | Open station: 706 kg 1556 lb Cab: 906 kg 1996 lb |
| Front tire | R3 Turf: 18×8.50-10 R3 Turf Radial: 18×8.50-10 R4: 18×8.5-10 |
| Rear tire | R3 Turf: 26×12-12 R4: 26×12-12 |
| Front tread range | 931 mm/ 36.7 in. |
| Rear tread spacing | 895 mm/ 35.2 in. |
PTO
| Type | Limited Category 1 |
|---|---|
| Lift capacity, 24-in. behind link arms | 344 kg/ 758 lb |
Fluid Capacities
| Crankcase with filter | 2.7 L/ 2.9 gal. |
|---|---|
| Transmission and hydraulic system | 12.3 L/ 3.2 gal. |
Final Drive & Operator Station
| Final drive type | Spur gear |
|---|---|
| Differential lock | Yes |
| Rollover protective structure | Type Foldable Yes |
| Platform – flat/straddle | One-piece semi-flat |
| Gear shift location – | Left-hand side |
1025R Parts Lookup
What is a Sub-Compact Tractor?
A compact tractor is a kind of tractor that is smaller than a regular tractor, and a sub-compact tractor, like a John Deere 1025R, is even smaller in size. The 1025R looks no bigger than a large lawn mower. So, the machine is perfect for homeowners, small landowners, and property maintenance professionals. Apart from their size, the main difference between a compact tractor and a sub-compact tractor lies in the horsepower they provide. A compact tractor typically has more power, ranging from 30 to 50 horsepower, while a sub-compact tractor usually offers less power, generally between 20 to 30 horsepower. The John Deere 1025R provides 23.9 horsepower (about 17.8 kW), which is within the lower range of sub-compact tractors.
What Makes the John Deere 1025R Special?
1. AutoConnect™ Mower Deck
It makes attaching and detaching the mower deck quick and hassle-free. You can drive over the deck, and it locks into place, and no tools or extra effort are required.
2. Quick Hitch & Implement Compatibility
The iMatch™ Quick Hitch system allows you to switch between implements in minutes. So it is easy to move from mowing to grading to tilling. Due to the design, the 1025R can handle a variety of attachments like loaders, tillers, and snow blowers. So the application scenarios of this machine are wide.
3. Hydrostatic Transmission (HST) with Twin Pedals
Forget clutching and shifting—just push a pedal to go forward and another to reverse. This is great for first-time operators who want easy control.
4. 4WD and Power Steering for Any Terrain
With four-wheel drive (4WD) and power steering, the 1025R can tackle muddy, uneven, or snow-covered surfaces effortlessly.
5. Comfortable Cab
Though it is a compact machine, the John Deere 1025R features an ergonomic design with a comfortable seat. Many operator claims an easy-to-reach control.
| Air conditioning | Heat only |
|---|---|
| Doors | 2 |
| Seat equipment | Premium seat |
John Deere 1025R Price
The base model of the machine usually starts at around $15,000, a little higher than other compact tractors. But the price varies if you purchase optional attachments like front-end loaders, backhoes, and other implements. With a 120R front-end loader, the price is around 18,000 – $20,000; with a backhoe, it will cost you approximately $22,000 – $24,000; with a mower deck, you have to pay $2,000 – $2,500 extra. The model is also popular in the used market; it can still be valued at least $12,000 to $16,000 after 1-3 years of use. You might find older models priced anywhere between $9,000 and $12,000.
Get Your JD 1025R Parts at FridayParts
The John Deere is a powerful and versatile sub-compact tractor. With multiple attachments like loaders, backhoes, and mower decks, it offers exceptional efficiency for various tasks. FridayParts has a wide inventory for all kinds of John Deere parts, all selected to meet OEM standards. Shop now and become a member, and you can get exclusive coupons every Friday!
