If Bobcat code M0309 shows up when you turn the key, start with the electrical system, not the hydraulics. The code is almost always tied to voltage dropping too far during startup, which is why machines with this fault crank slowly, need a jump pack, or throw the code after sitting overnight. Check voltage, grounds, and charging output first. That will get you to the cause far faster than chasing hydraulic theories.
What Does Bobcat Code M0309 Mean?
M0309 triggers when the machine sees unstable or insufficient voltage during cranking. The starter is pulling peak current, and the electrical system can’t hold steady through it. A weak battery will do that. So will corroded cables, a bad ground, or an alternator that hasn’t been keeping the battery topped up.
It’s a familiar pattern on Bobcat loaders like the T450, T550, T770, and some S-series machines. The code feels like it came out of nowhere, but the machine has usually been hinting for weeks: slower starts, weak cranking on cold mornings, or starting fine off a boost and then acting up again the next day.
Is M0309 a Hydraulic Fault?
Rarely.
Hydraulic faults show up in how the machine works: weak lift, sluggish response, poor drive power under load. M0309 shows up at the key, before the machine does anything. When a code appears right at startup alongside slow or hesitant cranking, the problem is electrical until proven otherwise.
So skip the fluid top-off. If the code appears while the starter is pulling current, your time is better spent on the battery, main cables, ground path, charging voltage, and starter circuit.
What Does It Usually Look Like in the Field?
Most owners describe the same thing. M0309 pops up the moment the key is turned, the machine cranks slower than normal, or won’t start at all. A jump pack gets it running, and it works fine the rest of the day—then the same code is back the next morning. Cold weather makes the whole pattern worse.
There’s a reason these faults hide and reappear. A marginal battery recovers enough after a day of charging to survive one start. A corroded ground only shows its resistance under a cold-start load. A weak alternator stays invisible until the machine sits long enough for the battery reserve to bleed off. None of these problems announce themselves while the engine is running—cranking is the only moment the system is stressed hard enough to expose them.
Common Causes of Bobcat Code M0309
Most M0309 cases trace back to the starting or charging side: a weak battery, corroded or loose connections, poor grounding, low alternator output, or excessive draw in the starter circuit.
| Area | Typical problem | Result |
|---|---|---|
| Battery | Low charge, age, weak reserve | Slow crank, voltage drop |
| Cable connection | Corrosion or loose terminals | Intermittent power loss |
| Ground path | High resistance at the frame or engine ground | Unstable startup voltage |
| Charging system | Low alternator output | The battery never fully recovers |
| Starter circuit | High current draw or relay issue | Sharp voltage drop during cranking |
| Environment | Cold weather or long idle time | Lower available starting power |
Notice what’s not on the list: the controller, the hydraulics, anything exotic. This is a basic electrical system fault in the vast majority of cases.

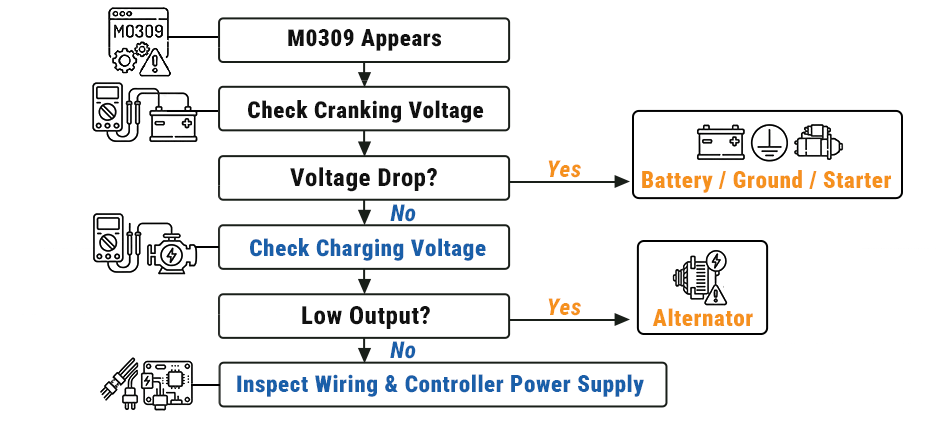

How to Troubleshoot Bobcat Code M0309?
Work from simple checks to loaded tests. It keeps you from buying parts you don’t need.
1. Inspect terminals, cables, and grounds
Before reaching for a meter, look. Loose clamps, green corrosion on terminals, chafed insulation, and a frame or engine ground that’s been painted over or left loose can all add enough resistance to cause startup trouble.

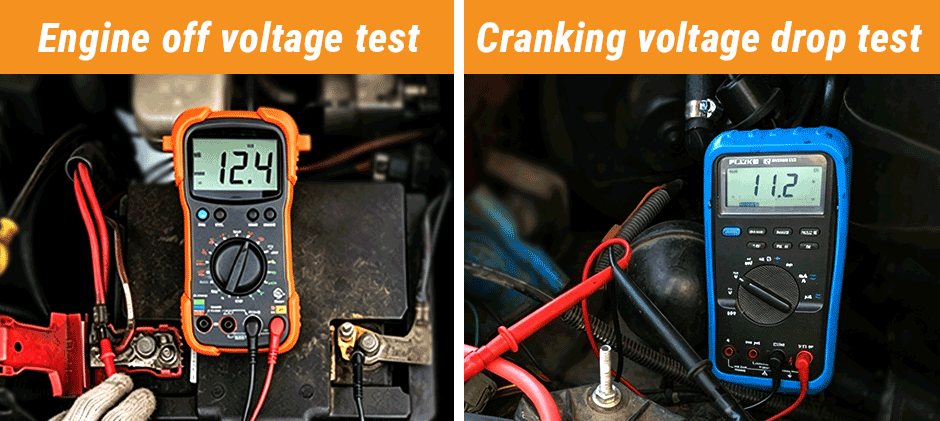

2. Check battery voltage with the engine off
- 12.4V–12.7V: usable charge range
- 12.2V–12.3V: borderline, partly discharged
- Below 12.2V: low charge or a weak battery
If the machine has been sitting and the reading is already low, charge and retest before going further.
3. Check voltage drop while cranking
This is the test that matters most for M0309, because it shows the system under actual load.
- Above 10.0V while cranking: acceptable
- 9.6V–10.0V: borderline
- Below 9.6V: battery, cable, ground, or starter-circuit trouble
A battery can read fine at rest and collapse the moment the starter engages. Resting voltage alone proves nothing.
4. Check the charging voltage once the engine is running
- 13.8V–14.4V is the healthy range
- Consistently low: charging-system problem
- Jumping around: wiring or regulator trouble
If the charging voltage stays low, the alternator is the next component to check closely.
5. Load-test the battery
If M0309 keeps returning, put the battery under a proper load test. This is the only way to catch a battery that holds surface voltage but has lost its reserve—the classic profile of a machine that won’t start cold but fires right up off a jump.
6. Check starter draw, relays, and fuses
If the battery and charging system pass, move downstream. A failing relay, a poor high-current connection, or a starter pulling more current than it should can drag voltage down hard enough to trigger the code. High draw with good wiring points at the starter motor itself.
7. Inspect the harness if the basics all pass
Normal voltage numbers plus a returning fault mean an intermittent problem somewhere in the wiring: damaged insulation, a connector that’s lost its grip, or unstable supply to the controller. These startup-only faults are easy to miss on a quick look, so go slowly here.
How to Clear Bobcat Code M0309?
Depending on the model, the code may clear itself after a restart once the fault is fixed, or it may stay stored until cleared with a diagnostic tool.
Either way, clearing it is the easy part. If M0309 comes back, the fault was never fixed—and in repeat cases, the machine almost always still has a weak battery, an undercharging alternator, a bad cable or ground, or excessive starter draw.
When to Replace the Part?
Replace after testing, not before. A battery that fails a load test gets replaced. The charging voltage stays low at the alternator. Excessive starter draw with clean, tight cables makes the starter motor the next target.
If all of that checks out and the code still returns, stop guessing and move to a deeper electrical diagnosis.
FAQ
Can you keep running the machine with M0309?
Better not to. A voltage problem that shows up as a code today tends to show up as a no-start tomorrow.
Why does the code come back after a jump start?
Because the jump pack only helps the machine get through startup. It does not fix the weak battery, poor charging output, bad ground, or excessive starter draw behind the code.
Does cold weather cause M0309?
Not by itself, but it makes weak electrical components show their problems faster.
Will the code clear after charging the battery?
Sometimes. But if the battery is weak or the charging system is not keeping up, the code will usually come back.
Is MO309 the same as M0309?
Yes. The official code uses a zero, but many owners type the letter O instead.
Conclusion
Bobcat code M0309 comes down to one thing: the machine is losing voltage at the moment it can least afford to. Start with the battery, cable ends, grounds, charging voltage, and starter draw. For confirmed repairs, FridayParts is a reliable source of quality aftermarket parts.
