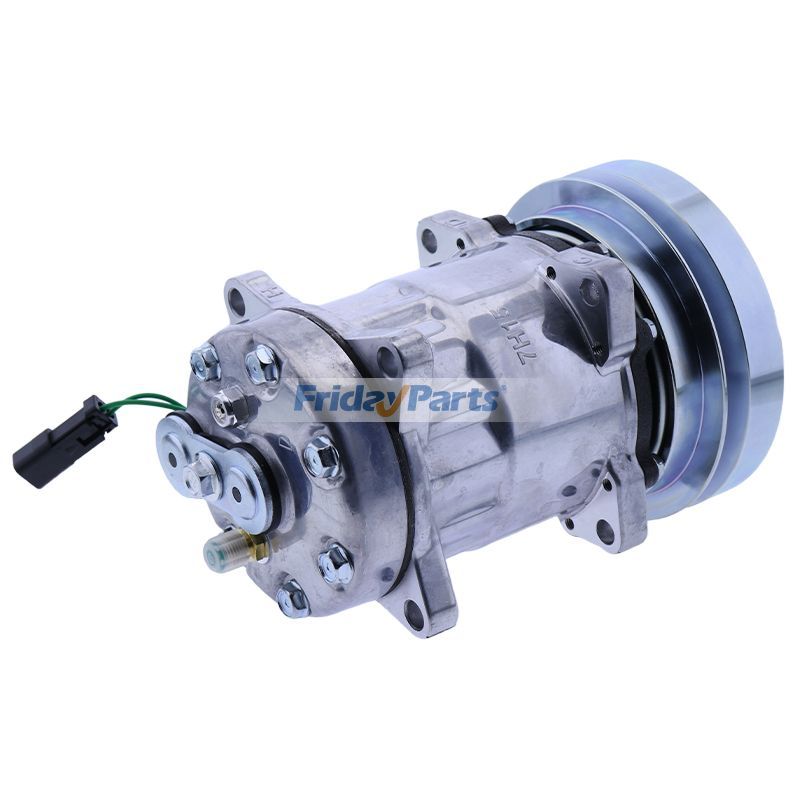

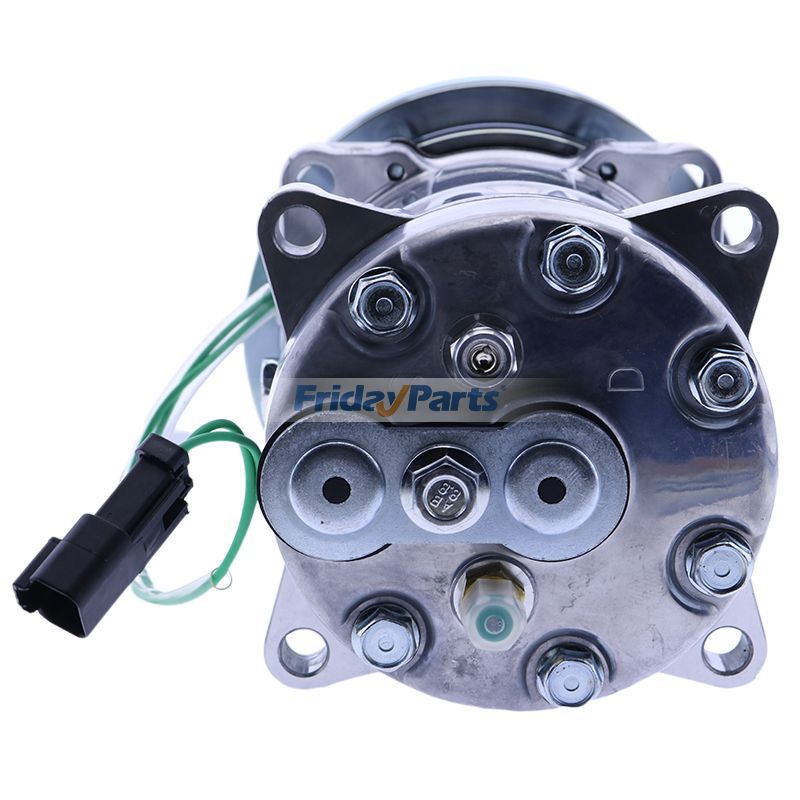

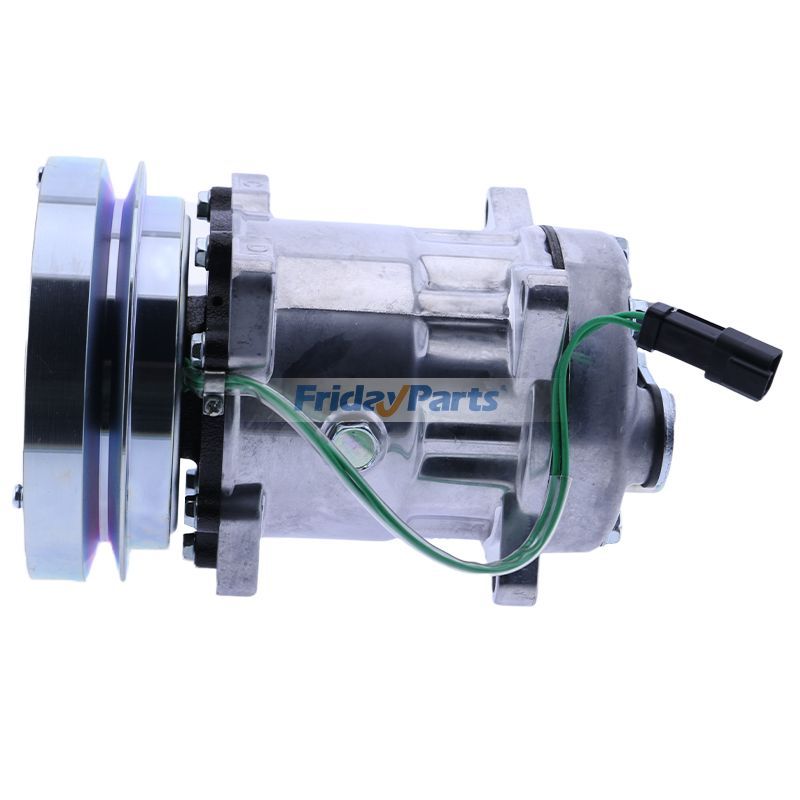

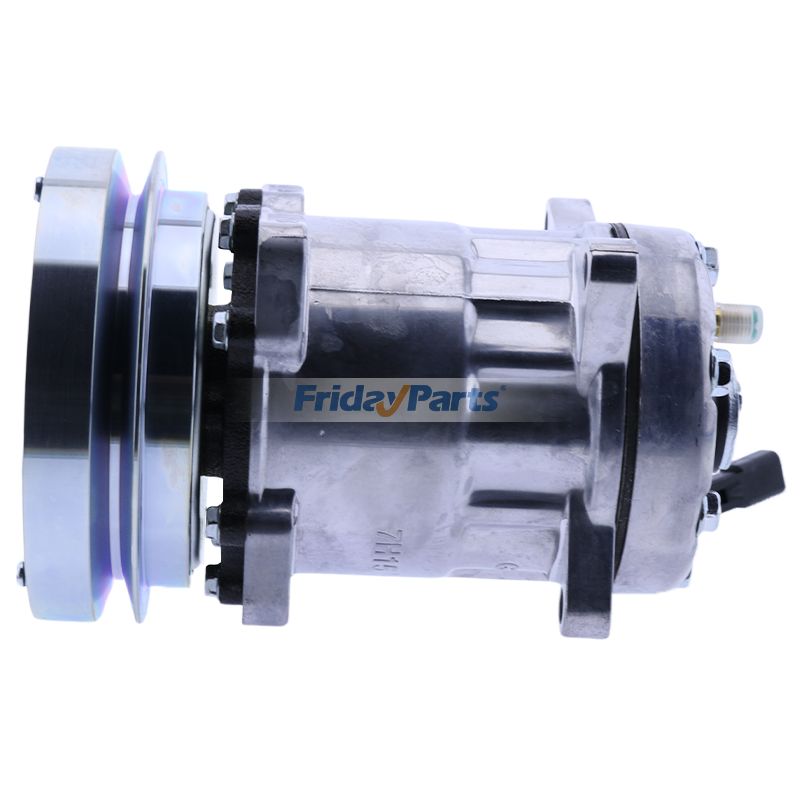

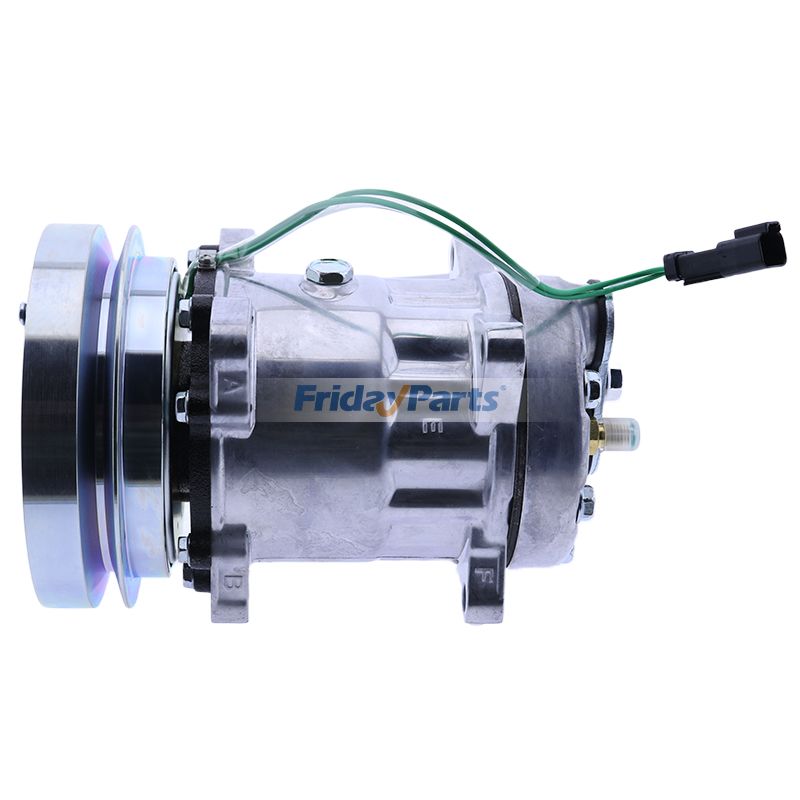

SD7H15 A/C Compressor 3E-1909 for Caterpillar CAT Loader 928F 928G 938F 950F 960F 953B 953C 963B
Type:A/C Compressor, Air Conditioner Compressor, Air Conditioning Compressor
Replace Part Number:CA3E1909,3E-1909,3E1909
Specification:
Compressor Family: SD7H15
Style: Sealed Heavy Duty
Compressor Mount Type: Ear
Rotation Direction: CW
Cylinder Head: GK
Port Angle: Horizontal
Head Port Head Style: O-Ring Compression
Clutch Diameter: 152 mm ~ 5.98 inches
Clutch Type: W/ Dust Cover
Belt Type: V-Belt
Number of Grooves: 1
Voltage: 24
Coil Connector: 2 Wire Deutsch
Coil Position: 12 O'clock
Oil Type: SP15 or PAG 100
Oil Qty: 300cc
Refrigerant: R134a
Fit for Caterpillar CAT Engine:3116
Application:
Fit for follwing models:
Caterpillar CAT Wheel-Type Loader:928F, 928G, 938F, 950F, 950F II, 960F
Caterpillar CAT Integrated Toolcarrier:IT28F, IT28G, IT38F
Caterpillar CAT Track-Type Loader:953B, 953C, 963B
Caterpillar CAT Track-Type Tractor:D5M, D6M
Compatible Model Brand
|
Model Number
|
Replacement Part Number
|
For CAT
|
928G, 938F, 950F, 950F II, 960F, IT38F, 963B, 953C, D5M, D6M, IT28G, IT28F, 928F, 953B
|
Compatible Engine Brand
|
Engine Number
|
Replacement Part Number
|
For CAT
|
3116
|
