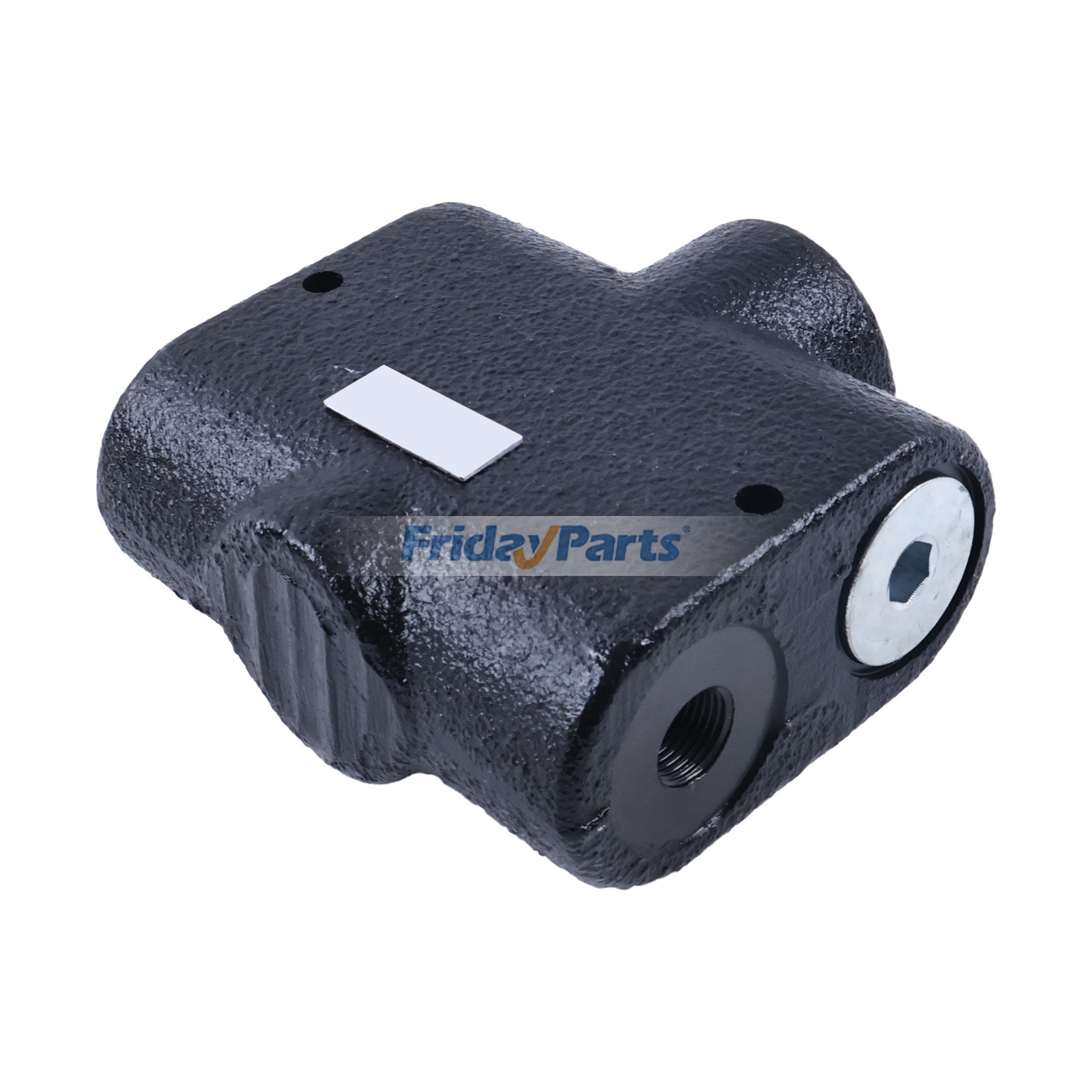

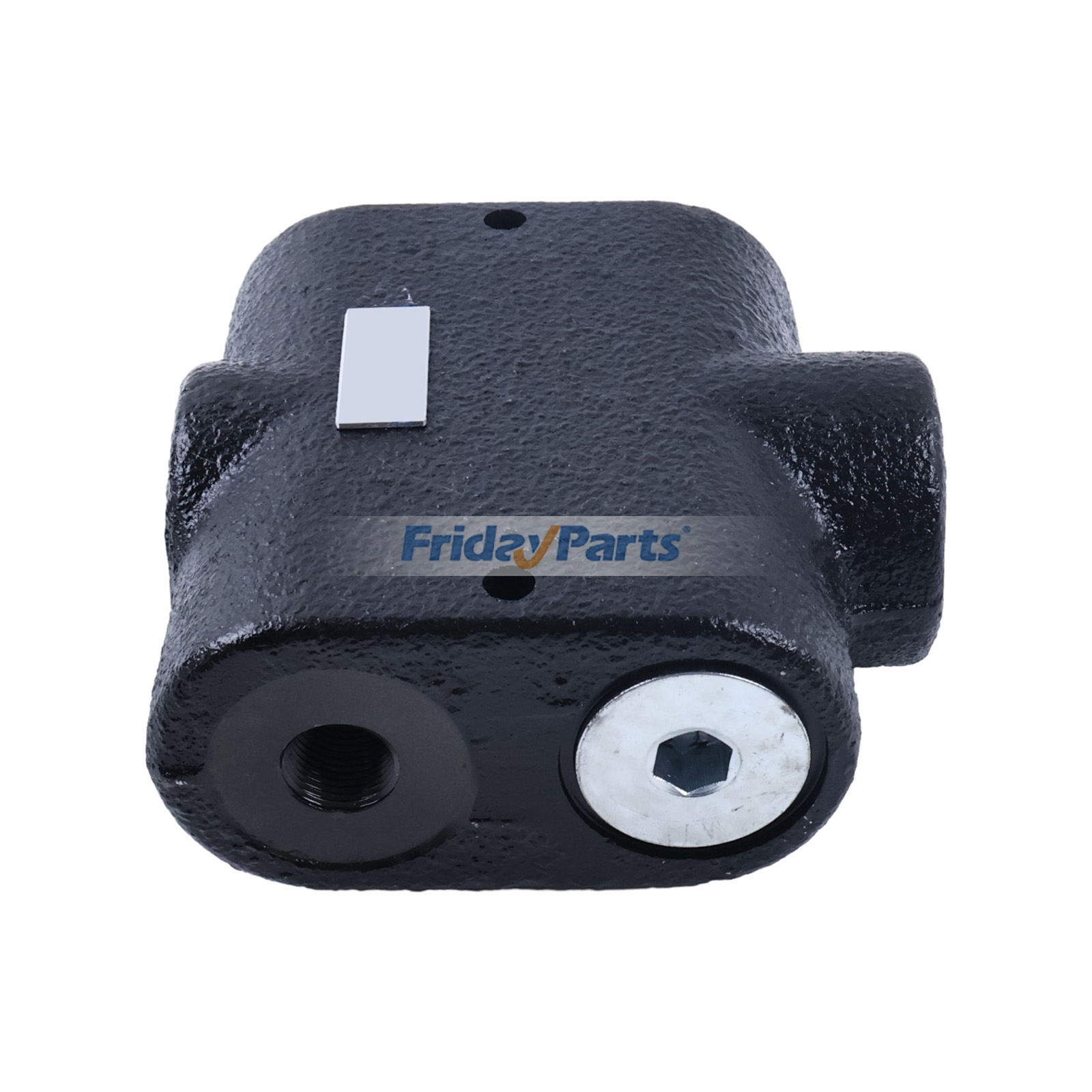

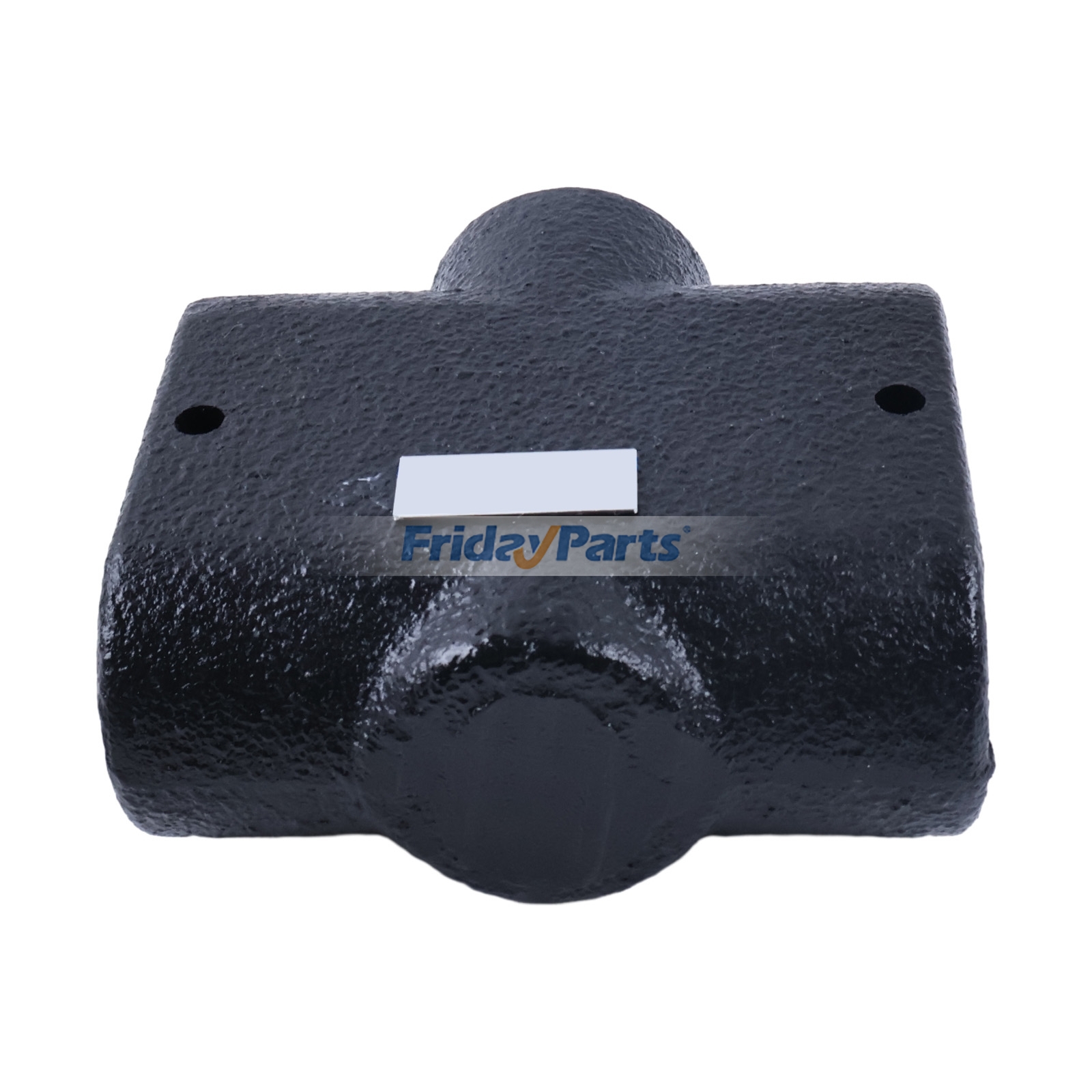

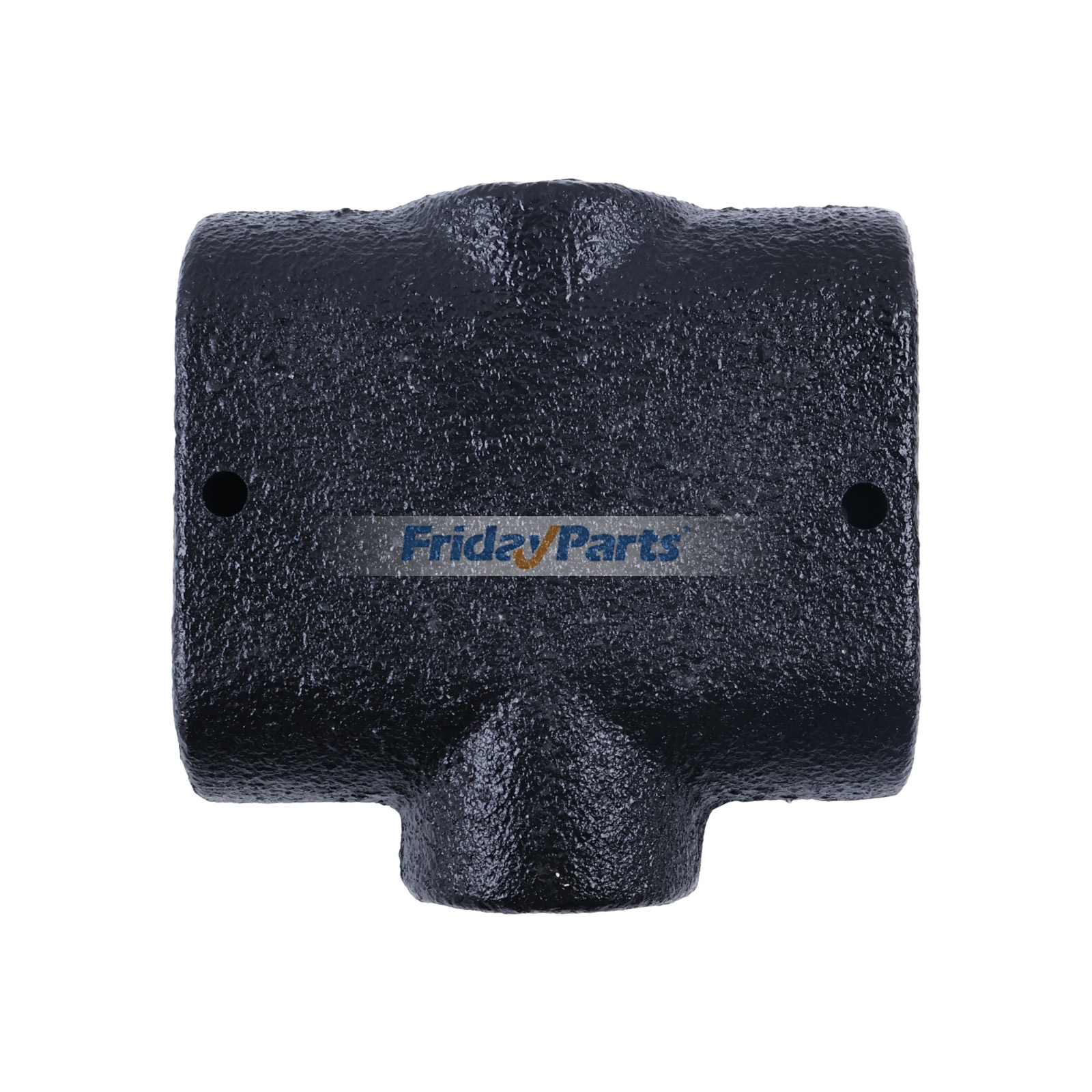

8 GPM 50:50 3/8” NPT Port Hydraulic Proportional Flow Divider Valve B50-06N for Loader Scissor Lift Dozer
Replacement Part Number: B50-06N, B5006N
Specification:
Port Size: 3/8” NPT
Max Working Pressure: 3000 PSI
Min Inlet Flow: 2 GPM
Max Inlet Flow: 8 GPM
Outlet Flow Ratio: 50:50
Divides fluid from pump into two output streams with a 50:50 ratio.
Pressure compensation on both outlets.
Division of fluid and ratio will remain constant (50:50) even when different work loads are being performed.
Precision ground heat treated steel spool ensures long work life.
Cast Iron Body
Buna N O-Ring Seals
Valve can be mounted in any orientation
2 through hole mounting holes (9/32” diameter)
Reverse Flow is Restricted
Applications:
Fit For Loader, Scissor Lift, Dozer
| Brand: | FridayParts |
| Compatible Model Brand: | For OTHER BRAND |
| Replacement Part Number: | B50-06N, B5006N |
